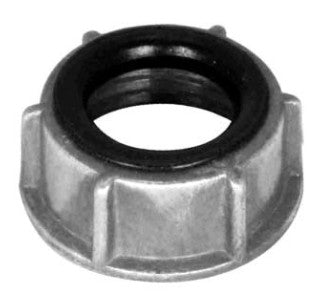

Orbit 2 in Insulated Zinc Conduit Bushing CBI-200

Product Overview

The Orbit CBI-200 is a 2 in insulated zinc conduit bushing for threaded Rigid and IMC conduit terminations. The insulated throat helps protect conductor insulation where conduit enters panels, enclosures, and raceways.

Constructed of die‑cast zinc with a zinc finish and listed to UL, CBI-200 is intended for dry‑location commercial and industrial electrical work, maintenance, and contractor stock applications.

Key Features

• 2 in trade size insulated throat bushing (Model CBI-200)
• Die‑cast zinc construction with zinc finish
• Threaded fitting for Rigid and IMC conduit
• Protects conductors at conduit entry points
• Compact design suitable for panel and enclosure installations
• UL listed

Function and purpose

The Orbit CBI-200 is an insulated conduit bushing sized for 2 in trade conduit. Its insulated throat is intended to reduce abrasion and protect conductor insulation where threaded Rigid or IMC conduit terminates into boxes, panels, and enclosures.

• Provides an insulated entry for conductors
• Reduces potential wire damage at conduit terminations
• Used at conduit terminations and raceway ends

Typical applications

CBI-200 is used in installations requiring a 2 in insulated throat bushing for threaded conduit terminations.

• Rigid and IMC conduit terminations
• Panel and enclosure entries
• Wire protection at raceway ends
• Contractor stock and maintenance/replacement

Compatibility and installation notes

CBI-200 is a threaded fitting intended for Rigid and IMC conduit. Confirm the trade size and threaded connection match the conduit and enclosure before installation. Installation should be performed by qualified electrical personnel and verified against project drawings and applicable electrical codes.

• Threaded for Rigid/IMC conduit
• Rated for dry locations
• Verify model number, trade size, mounting method, and code requirements prior to installation

Technical specifications

Reference attributes provided for planning and specification.

• Brand: Orbit
• Model / SKU: CBI-200
• Product type: Insulated zinc conduit bushing
• Trade size: 2 in
• Throat type: Insulated throat
• Material: Die‑cast zinc
• Finish: Zinc finish
• Mounting type: Threaded Rigid/IMC conduit bushing installation
• Location rating: Dry location
• Certifications: UL
• Catalog pages: D41 / D75

Before You Order

Confirm the model number and trade size required for your project before ordering.

• Verify CBI-200 matches the conduit thread and enclosure entry size
