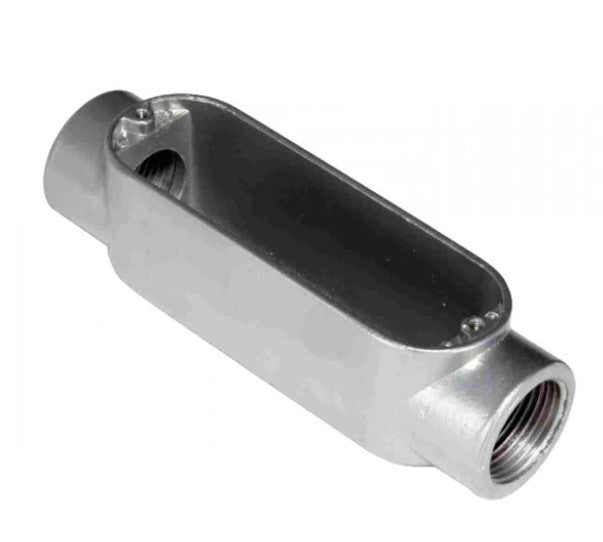

Orbit Type C Threaded Aluminum Conduit Body 1-1/4 in C-125

Product Overview

The Orbit C-125 is a 1-1/4 in Type C threaded conduit body designed for threaded Rigid and IMC conduit runs. It provides an access point for wire pulling, feed‑through, and maintenance.

Constructed of die‑cast copper‑free aluminum with a gray powder‑coated finish, this listing is for the body only — cover and gasket are ordered separately. Hubs are NPT threaded.

Key Features

• Trade size: 1-1/4 in Type C threaded conduit body (model C-125)
• Die‑cast copper‑free aluminum construction with gray powder‑coated finish
• NPT threaded hubs for use with threaded Rigid and IMC conduit
• Body only — cover and gasket must be purchased separately
• Provides an access point for wire pulling, feed‑through, maintenance, and direction changes
• Location rating: wet locations when used with a compatible cover and gasket
• Certifications: UL, RoHS

What this conduit body does

The Orbit C-125 provides a serviceable access point in threaded Rigid or IMC conduit runs. Install it where wire pulling, feed‑through, maintenance, or changes in raceway direction are required.

• Type: C (threaded) access conduit body
• Used for routing, pulling, and accessing conductors inside threaded metal conduit systems

Typical applications

The C-125 is specified for commercial and industrial electrical systems where threaded conduit is used. Common uses include service entrance wiring, contractor stock, industrial maintenance, and locations requiring periodic access to conductors.

• Threaded Rigid and IMC conduit runs
• Wire pulling access points and feed‑throughs
• Direction changes in raceway layouts
• Commercial and industrial electrical systems

Materials and finish

The body is die‑cast copper‑free aluminum with a gray powder‑coated finish. The material and finish are intended for standard mechanical protection and corrosion resistance in typical electrical installations.

• Die‑cast copper‑free aluminum body
• Gray powder‑coated finish

Connections and compatibility

The C-125 uses NPT threaded hubs sized for 1-1/4 in trade size conduit. This listing is for the conduit body only; cover and gasket are not included and must be ordered separately. Use compatible covers and gaskets to achieve wet‑location ratings.

• Trade size: 1-1/4 in
• Hub type: NPT threaded hubs
• Cover and gasket: body only — order cover and gasket separately

Certifications and location rating

The Orbit C-125 carries UL and RoHS listings. When installed with a compatible cover and gasket, the conduit body is rated for wet locations. Installations must follow local electrical code and be completed by qualified personnel.

• Certifications: UL, RoHS
• Location rating: wet location when used with compatible gasket and cover

Before You Order

Confirm the model number (C-125), trade size (1-1/4 in), and that a compatible cover and gasket will be ordered for the required location rating. Installation must be performed by qualified electrical personnel and conform to local code and project requirements.

• This listing is for the conduit body only; purchase cover and gasket separately to achieve wet‑location rating.
• Verify compatibility with threaded Rigid or IMC conduit and project drawings before ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Orbit Type C Threaded Aluminum Conduit Body 1-1/4 in C-125. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
