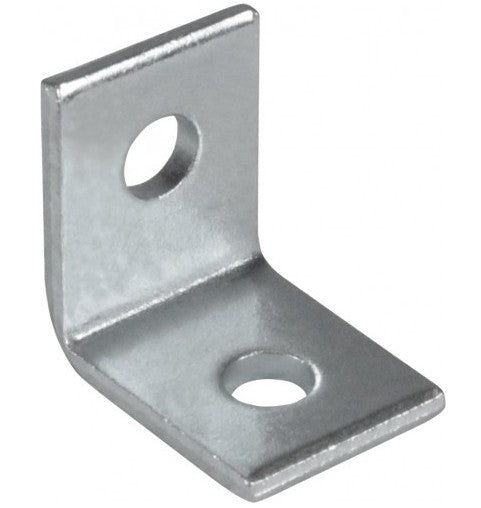

Orbit Angle Bracket 1/4 in Hole and 3/8 in Hole AB6

Product Overview

Compact steel angle bracket (model AB6) with one 1/4 in hole and one 3/8 in hole for light-duty electrical support and fastening in dry locations.

Commonly used for box and conduit support layouts, commercial rough‑in, facility maintenance, field modifications, and contractor stock.

Key Features

• Two-hole configuration: 1/4 in hole and 3/8 in hole
• Steel construction with zinc or galvanized finish
• Compact angle profile for confined layouts
• Intended for light-duty support and fastening
• Location rating: dry locations

Function and common applications

The Orbit AB6 provides a compact right-angle mounting option for light-duty electrical support and fastening where the 1/4 in and 3/8 in holes accept common fasteners.

Applications listed for this model include box and conduit support layouts, commercial rough‑in work, field modifications, and general facility maintenance.

• Electrical support fastening
• Box and conduit support
• Commercial rough‑in and maintenance
• Contractor stock part for quick replacement

Construction and finish

Manufactured from steel with a zinc or galvanized finish, the bracket is described for use in dry locations.

The compact profile reduces obstruction in confined spaces while providing a mounting surface suitable for light loads.

• Material: Steel
• Finish: Zinc or galvanized finish
• Location rating: Dry location

Compatibility and installation notes

Confirm the model number (AB6) and hole sizes before ordering to ensure the holes match your fasteners and mounting method.

Installation should be performed by qualified personnel and be verified against local electrical code, project drawings, and jobsite conditions.

• Hole configuration: 1/4 in hole and 3/8 in hole
• Intended mounting: angle bracket support installation

Who typically buys this part

Electricians, contractors, and maintenance teams commonly use this compact angle bracket for light‑duty support tasks and as a contractor-stock item.

Before You Order

Confirm the model number (AB6), required hole sizes, and quantity before ordering.

• Check that 1/4 in and 3/8 in hole sizes match your fasteners and field conditions
• Verify the zinc or galvanized finish meets project corrosion-resistance needs
• Ensure installation complies with local electrical code and is performed by qualified personnel

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Orbit Angle Bracket 1/4 in Hole and 3/8 in Hole AB6. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
