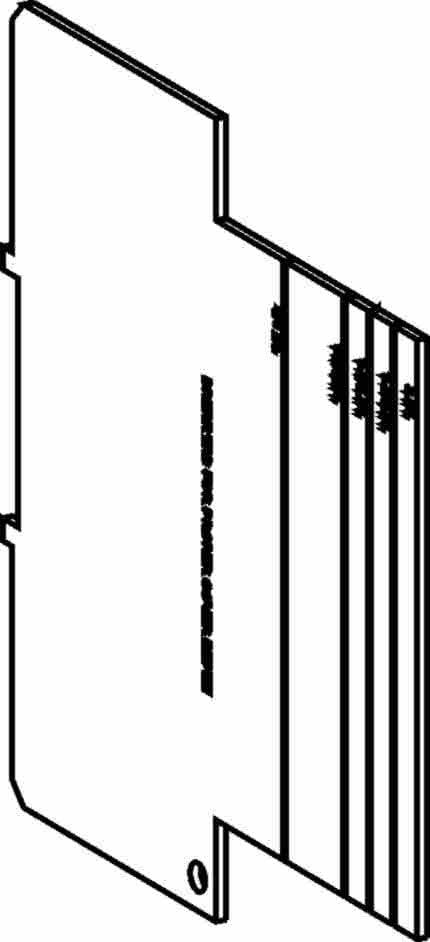

Orbit 5S Low-Voltage Box Partition 1-1/4 in to 2 in 5SDP-200

Product Overview

The Orbit 5SDP-200 is a galvanized sheet-steel low-voltage partition designed for 5S square electrical boxes. It fits rings/openings sized 1-1/4 in to 2 in and provides a separate compartment for low-voltage devices.

Built for contractor and commercial wall-box applications, the 5SDP-200 uses a breakaway tab style for field installation and is intended for dry locations. It carries UL and RoHS listings per the manufacturer specification.

Key Features

• Fits 5S square box openings from 1-1/4 in to 2 in
• Galvanized sheet-steel construction
• 2-1/8 in box depth compatibility
• Separates low-voltage and power compartments
• Breakaway tab style for field installation
• Location rating: dry location; Certifications: UL, RoHS

What this partition does

The Orbit 5SDP-200 provides a physical barrier inside a 5S square electrical box to separate low-voltage devices from power compartments. It is intended for use where segregation of signal/data wiring from line-voltage wiring is required.

• Creates separate low-voltage and power compartments within a single 5S box
• Breakaway tab design allows field trimming or adjustment during installation

Box and ring compatibility

The 5SDP-200 is sized to match 5S box openings and works with ring sizes specified as 1-1/4 in to 2 in. Confirm your box family, opening size, and ring dimensions before ordering.

• Box family: 5S (5S square box)
• Ring compatibility: 1-1/4 in to 2 in

Materials and construction

Constructed from galvanized sheet steel, the partition is finished for corrosion resistance typical of commercial electrical hardware and is intended for dry-location applications.

• Material: galvanized sheet steel
• Finish: galvanized

Installation and code reminders

The 5SDP-200 uses a breakaway tab style for field installation and is intended to be installed by qualified electrical personnel. Verify local code requirements and project drawings for proper use and placement.

• Mounting type: 5S square box partition installation (breakaway tab)
• Location rating: dry location
• Certifications listed: UL, RoHS
• Confirm box size, depth, knockout pattern, and mounting method prior to ordering

Before You Order

Confirm the model number (5SDP-200), box family (5S), opening/ring size (1-1/4 in to 2 in), and box depth prior to ordering. Installation must be performed by qualified electrical personnel and checked against local code and project requirements.

• Verify box family, opening size, and depth
• Check knockout pattern and mounting method for your box
• Confirm quantity required for the project

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Orbit 5S Low-Voltage Box Partition 1-1/4 in to 2 in 5SDP-200. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
