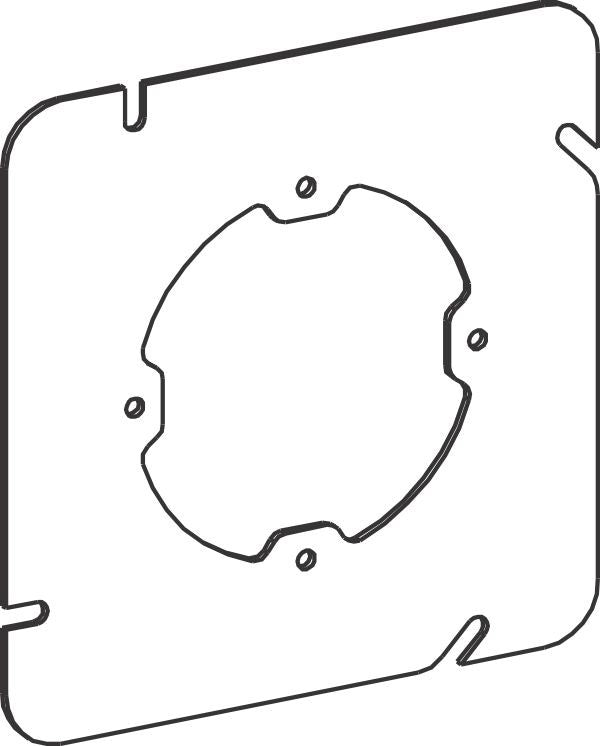

Orbit 5S Flat Dual-Direction Steel Plaster Ring 53000X

Product Overview

The Orbit 53000X is a flat 5S plaster ring engineered for mounting fixtures or devices to 5S square electrical boxes. It provides a dual-direction fixture-tab layout and matches a 4-11/16 in W x 4-11/16 in H opening.

Constructed from 16-gauge galvanized sheet steel with a dry-location rating, the 53000X is intended for rough-in, replacement, and maintenance work in commercial and contractor applications. Certified to UL and RoHS where applicable.

Key Features

• Flat (no raised depth) 5S plaster ring for 5S square boxes
• Dual-direction fixture-tab layout for versatile mounting
• 16 gauge galvanized sheet steel construction
• Matches 4-11/16 in W x 4-11/16 in H opening
• Location rating: Dry location; Certifications: UL, RoHS

What this plaster ring is for

The Orbit 53000X is designed to mount fixtures or devices to a 5S square electrical box where a flat plaster ring is required. It supports rough-in work, finished wall box adjustments, replacement ring work, and general facility maintenance in commercial and contractor settings.

• Fixture and device mounting layout with dual-direction tabs
• Common uses: contractor stock, replacement installations, maintenance

Dimensions and box compatibility

This plaster ring matches a 4-11/16 in W x 4-11/16 in H opening and is intended for 5S square box mounting. Confirm that the receiving box is a 5S square box with the same opening dimensions before ordering.

• Opening dimensions: 4-11/16 in W x 4-11/16 in H
• Mounting type: 5S square box plaster ring

Construction, finish, and location rating

The 53000X is made from 16-gauge sheet steel with a galvanized finish. It is supplied as a flat ring (no raised depth), offering corrosion resistance typical of galvanized steel in dry interior settings.

• Material: 16 gauge sheet steel
• Finish: Galvanized
• Raised depth: Flat
• Location rating: Dry location

Installation notes and verification

Installation should be completed by qualified electrical personnel and checked against local electrical code, project drawings, and field conditions. Confirm model number and physical measurements to ensure compatibility with the existing box and device before ordering.

• Confirm catalog number, box size, depth, opening, knockout pattern, rating, and mounting method before ordering
• Installation must comply with local code and project requirements

Before You Order

Confirm the model number and required quantity before ordering. Verify the receiving box is a 5S square box with matching opening and mounting requirements.

• Check box size, depth, opening, and knockout pattern for compatibility
• Ensure installation will be performed by qualified electrical personnel and meet local code
