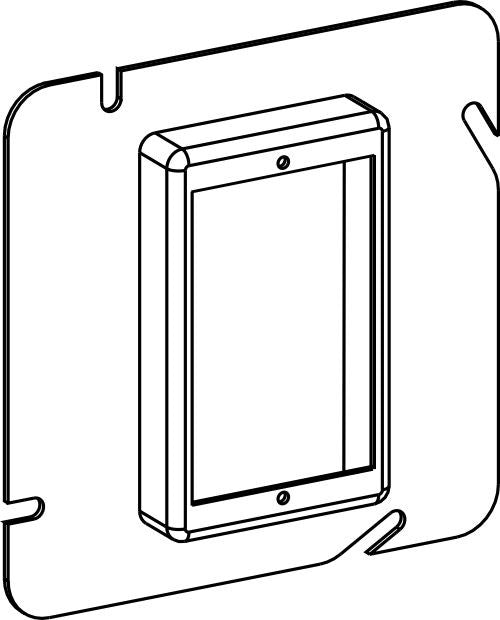

Orbit 5S 1-Gang 1 in Raised Steel Device Ring 51100

Product Overview

The Orbit 51100 is a 5S device ring sized for a single gang with a 1 in raised profile, providing a finished-wall mounting surface for switches and receptacles where a 5S square box is used.

Constructed from 16-gauge galvanized sheet steel with a galvanized finish and rated for dry locations. The ring face measures 4-11/16 in W x 4-11/16 in H.

Key Features

• 1-gang device ring with 1 in raised depth
• Fits 5S square box mounting
• Face dimensions: 4-11/16 in W x 4-11/16 in H
• 16 gauge galvanized sheet steel construction
• Location rating: dry location
• Certifications: UL, RoHS

Function and purpose

The Orbit 51100 device ring provides a finished-wall mounting surface for a single electrical device (switch or receptacle) where a 5S square box is installed. The 1 in raised profile provides additional depth to account for wall finish thickness or device alignment.

• Intended for switch and receptacle rough-in and replacement where a 5S box is used.
• Commonly kept in contractor stock and used for facility maintenance or commercial wall box work.

Dimensions and construction

Verify physical fit by comparing the ring face and raised depth with the installation requirements.

• Face dimensions: 4-11/16 in W x 4-11/16 in H
• Raised depth: 1 in
• Material: 16 gauge galvanized sheet steel
• Finish: Galvanized

Compatibility and installation notes

Designed for mounting to 5S square boxes. Installation should be performed by qualified electrical personnel and verified against local codes and project drawings.

• Mounting type: 5S square box device ring
• Confirm box size, knockout pattern, raised depth, and overall fit before ordering

Ratings and certifications

Use the device ring in environments that match its location rating and listed certifications.

• Location rating: Dry location
• Certifications: UL, RoHS

Before You Order

Verify the part number, box size, knockout pattern, raised depth, and dimensions against jobsite conditions before ordering.

• Confirm catalog number 51100 and quantity needed
• Verify compatibility with the specific 5S box and wall finish

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Orbit 5S 1-Gang 1 in Raised Steel Device Ring 51100. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
