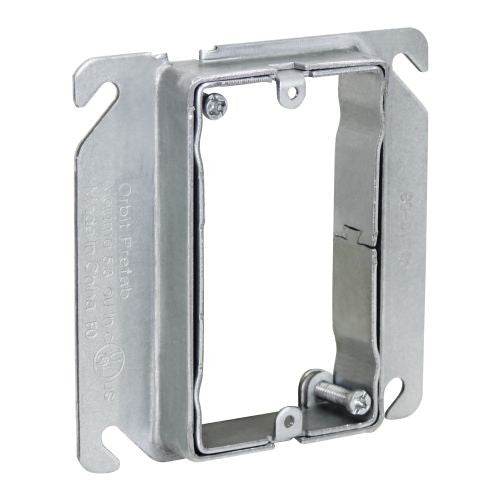

Orbit 1-Gang 4S Adjustable Ring 3/4 in to 1-1/2 in 4AR1G-34

Product Overview

The Orbit 4AR1G-34 is a 1-gang adjustable ring for mounting to 4S square boxes, providing an adjustable device plane between 3/4 inch and 1-1/2 inches.

Made from 16-gauge sheet steel with a galvanized finish, this ring is intended for dry-location electrical box, cover, device, and enclosure installations.

Key Features

• 1-gang adjustable ring for 4S square boxes
• Adjustable depth range: 3/4 in to 1-1/2 in
• 16 gauge sheet steel construction with galvanized finish
• Location rating: dry locations
• Manufacturer model/SKU: 4AR1G-34

What this adjustable ring does

The Orbit 4AR1G-34 provides a 1-gang opening that mounts to 4S square electrical boxes and allows the device plane to be set between 3/4 inch and 1-1/2 inches from the box face to match finished wall thickness.

• Corrects finished wall depth without replacing the box
• Allows proper alignment of devices and covers with the finished wall surface

Suitable applications

Intended for contractor and commercial installations where a 1-gang opening on a 4S box requires depth adjustment.

• Finished wall depth correction
• Commercial wall rough-in and remodel work
• Tile or retrofit installations
• Replacement ring stocking for contractors

Materials and finish

Formed from 16-gauge sheet steel with a galvanized finish suitable for typical dry-location use.

• 16 gauge sheet steel construction
• Galvanized finish

Compatibility and installation notes

Designed to mount to standard 4S square boxes and accept single-gang devices or covers. Verify compatibility with the existing box and devices before ordering.

• Compatible with 4S square box mounting
• Confirm box size and 1-gang device opening prior to purchase
• Designed for dry-location use
• Installation should follow local electrical codes and be performed by qualified personnel

Before You Order

Confirm the model number and that the required finished-wall depth falls within the 3/4 in to 1-1/2 in range and that you are using a 4S square box.

• Verify box size and 1-gang device opening
• Confirm needed finished-wall depth is within 3/4 in to 1-1/2 in
• Have installations performed or inspected by qualified electrical personnel
