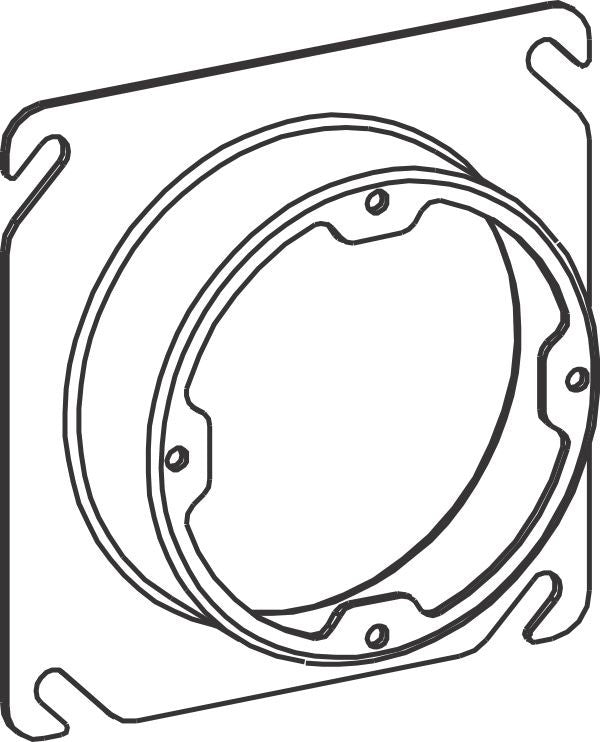

Orbit 4S 1 in Dual-Direction Steel Plaster Ring 43100X

Product Overview

The Orbit 43100X is a 4S plaster ring for 4 in x 4 in square electrical boxes, offering a 1 in raised profile to accommodate finished-wall depths and device mounting.

Made from 16 gauge sheet steel with a galvanized finish, the 43100X includes dual-direction fixture tabs. It is listed as UL and RoHS and is indicated for dry-location use.

Key Features

• 1 in raised depth
• Dual-direction fixture-tab layout
• Fits standard 4S (4 in x 4 in) square electrical boxes
• 16 gauge sheet steel construction with galvanized finish
• UL and RoHS listed; rated for dry locations
• Manufacturer SKU: 43100X

What this plaster ring is used for

The Orbit 43100X provides a mounting interface between a 4 in x 4 in (4S) electrical box and devices, covers, or fixtures where a 1 in raised profile is required to match finished-wall depth.

The dual-direction fixture tabs allow mounting in two fixture orientations as provided by the part design.

• Common uses: fixture and device mounting, replacement plaster-ring work, on-site contractor stock for 4S boxes

Dimensions, construction, and finish

Match the ring to a 4 in x 4 in square box. The 43100X is fabricated from 16 gauge sheet steel and has a galvanized finish.

• Overall: 4 in W x 4 in H
• Raised depth: 1 in
• Material: 16 gauge sheet steel
• Finish: Galvanized

Compatibility and installation notes

The ring is intended for use with 4S square box plaster-ring mounting and includes dual-direction fixture tabs for orientation flexibility.

Installation should be performed by qualified electrical personnel and reviewed against project drawings and applicable local electrical codes.

• Mounting type: 4S square box plaster ring
• Device opening: dual-direction fixture tabs
• Confirm box size, raised depth, and mounting method before ordering

Ratings and certifications

The product listing indicates UL and RoHS and shows a dry-location rating. Use listed certifications and ratings to assess suitability for your application.

• Location rating: Dry location
• Certifications: UL, RoHS

Before You Order

Verify the part number, quantity, and that a 4 in x 4 in (4S) box and 1 in raised profile meet your project needs.

• Installation must be completed by qualified electrical personnel.
• Check project drawings and local electrical codes for mounting and clearance requirements.
