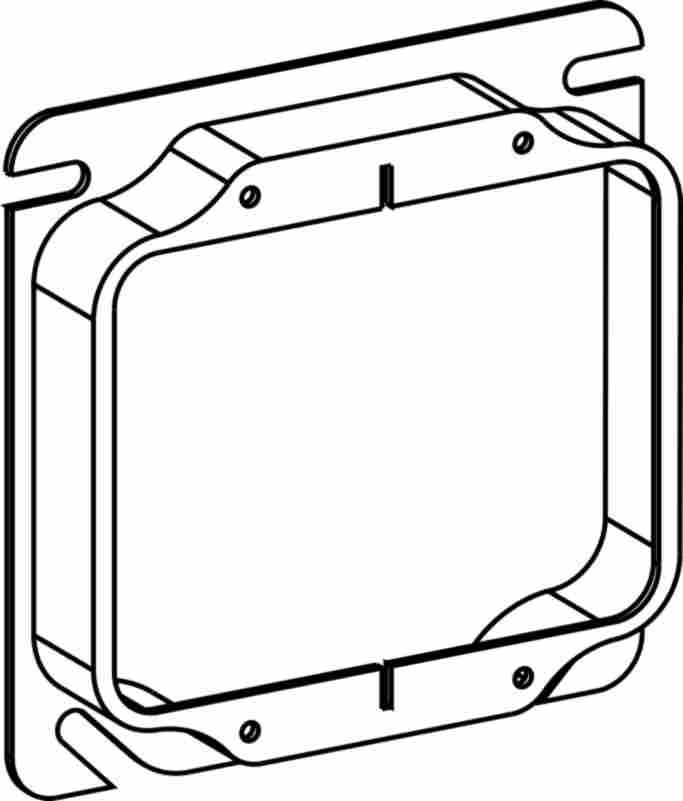

Orbit 4S 2-Gang 1 in Raised Tile Steel Device Ring 42100T

Product Overview

The Orbit 42100T is a 4S device ring sized for 2-gang device openings with a 1 in raised profile designed for tile applications. It fits a 4 in W x 4 in H 4S square box and is intended for contractor-grade electrical finishing and replacement work.

Constructed from 16 gauge sheet steel with a galvanized finish, the 42100T is UL- and RoHS-listed and is rated for dry locations. Use it to adapt or finish 4S square boxes for switches, receptacles, and similar devices.

Key Features

• 2-gang device ring sized for 4S (4 x 4 in) square boxes
• 1 in raised profile for tile/finished-surface installations
• 16 gauge sheet steel construction with a galvanized finish
• Designed for contractor-grade switch and receptacle rough-in and replacement
• Listed to UL and RoHS (as supplied)

What this device ring does

The Orbit 42100T provides a finished, flush-mounted face for two electrical devices in a 4S square box while adding 1 inch of raised depth to accommodate tile or other finished surfaces. It is used to mount switches, receptacles, or covers where a raised device ring is required.

Dimensions and raised profile

Confirm physical fit by matching the ring to the box and device opening before installation.

• Overall footprint: intended for 4 in W x 4 in H 4S square box
• Gang count: 2-gang
• Raised depth: 1 in

Materials, finish and location rating

The 42100T is fabricated from 16 gauge sheet steel with a galvanized finish for corrosion resistance in normal interior environments. It is rated for dry locations.

• Material: 16 gauge sheet steel
• Finish: Galvanized
• Location rating: Dry location
• Certifications: UL, RoHS

Compatibility and typical applications

Use this device ring where a 2-gang opening is required atop a 4S square electrical box and where the finished surface requires a 1 in raised ring (for example, tile installations). Typical uses include switch and receptacle rough-in, replacement of existing rings, and contractor stock for commercial jobs.

• Compatible with 4S (4 x 4 in) square boxes
• Intended for switches and receptacles in finished wall adjustments and tile applications

Before you order

Confirm the part number and physical requirements for your installation before purchasing. Installation should be performed by qualified electrical personnel and verified against project drawings and applicable local electrical code.

• Confirm box size (4S), device opening, and required raised depth (1 in) before ordering
• Verify device screw locations and cover compatibility where applicable

Before You Order

Confirm the model number and quantity required before ordering. Check that a 2-gang 4S (4 x 4 in) box and a 1 in raised profile meet your project and finish-surface needs.

• Ensure compatibility with the existing box and device covers
• Have installation performed or inspected by qualified electrical personnel
• Provide project drawings or site measurements when ordering for replacement or contractor stock
