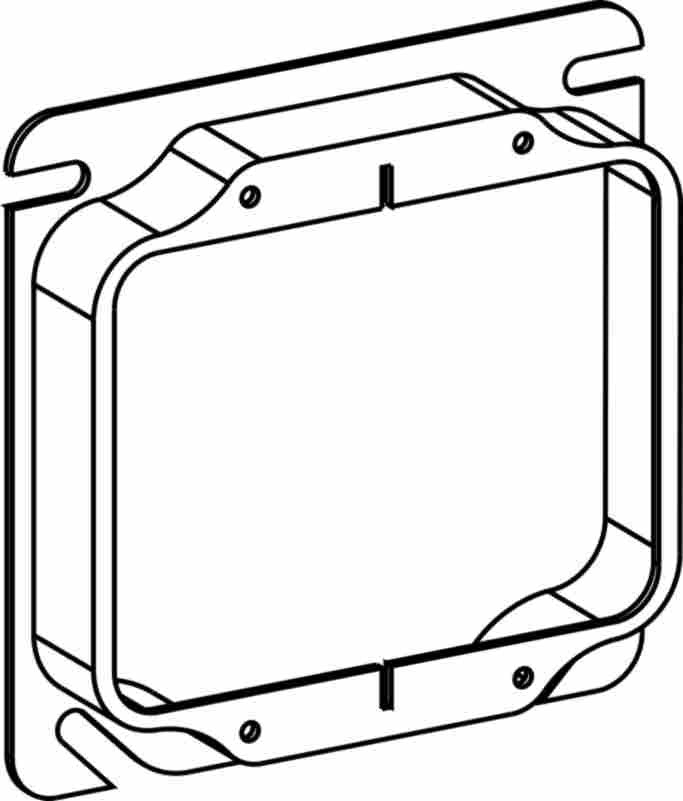

Orbit 4S 2-Gang 3/4 in Raised Steel Device Ring 42075

Product Overview

The Orbit 42075 is a 4S device ring configured for 2-gang installations with a 3/4 in raised profile. It is made from 16‑gauge sheet steel with a galvanized finish and sized for 4 in x 4 in 4S square electrical boxes.

Intended for dry-location use in applications such as switch and receptacle rough‑ins, finished wall adjustments, and replacement ring work where a raised mounting is required.

Key Features

• 2-gang device ring sized for 4 in x 4 in 4S square boxes
• 3/4 in raised depth
• 16 gauge sheet steel construction with galvanized finish
• Location rating: dry location
• Listed with UL and RoHS (as specified)

Function and intended use

The Orbit 42075 adapts 4 in x 4 in 4S square boxes to accept two devices where a 3/4 in raised face is required. Typical uses include mounting switches and receptacles and replacing existing device rings that require a raised profile.

• Fits standard 4S 4 in x 4 in square electrical boxes
• For mounting switches and receptacles where raised depth is needed
• Suitable for contractor and commercial inventory

Dimensions and materials

Designed for 4 in W x 4 in H 4S boxes, the ring provides a 3/4 in raised depth from the box face. It is fabricated from 16 gauge sheet steel with a galvanized finish.

• Gang count: 2-gang
• Raised depth: 3/4 in
• Face dimensions: 4 in W x 4 in H
• Material: 16 gauge sheet steel
• Finish: Galvanized

Compatibility and installation notes

Confirm box size, device opening, and mounting method before ordering to ensure proper fit. Installation should be performed or supervised by qualified electrical personnel and follow applicable local electrical codes.

• Mounting type: 4S square box device ring
• Intended for use with compatible 4 in x 4 in 4S boxes
• Check device screw alignment and depth when replacing existing rings

Certifications and location rating

Specified for dry-location use and identified with UL and RoHS certifications as listed.

• Location rating: Dry location
• Certifications: UL, RoHS

Before You Order

Verify the model number (42075), box size, device type, and required quantity before ordering.

• Confirm compatibility with your 4 in x 4 in 4S square box
• Ensure the intended installation is a dry location
• Have installation performed by qualified electrical personnel

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Orbit 4S 2-Gang 3/4 in Raised Steel Device Ring 42075. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
