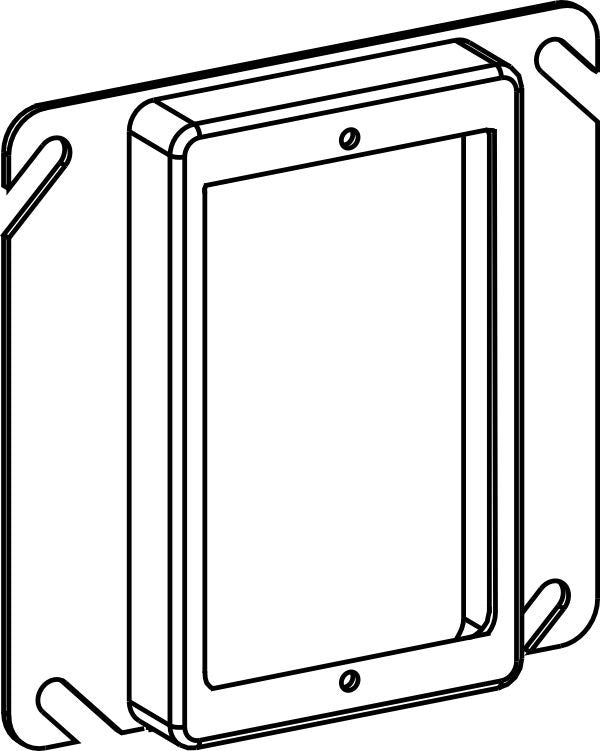

Orbit 4S 1-Gang 1-1/4 in Raised Steel Device Ring Tile 41125T

Product Overview

The Orbit 41125T is a 1-gang device ring designed for device mounting on a 4 in square electrical box. Its 1-1/4 in raised profile is identified for tile ring use.

This ring is made from 16 GA sheet steel with a galvanized finish. The listed location rating is dry location.

Key Features

• 1-gang device opening with a 1-1/4 in raised profile
• Tile ring for 4 in square box device mounting
• 16 GA sheet steel construction with galvanized finish
• 4 in x 4 in dimensions; listed UL and RoHS

Device Mounting on a 4 in Square Box

Orbit 41125T is a 1-gang 4S device ring for device mounting on a 4 in square box. Its stated dimensions are 4 in x 4 in.

Raised Profile for Tile Applications

The 41125T has a 1-1/4 in raised profile and is designated as a tile ring. These details help identify the ring when selecting a device-mounting component for a tile wall installation.

Steel Construction and Location Rating

This Orbit ring is made from 16 GA sheet steel and has a galvanized finish. Its listed location rating is dry location.

• Listed certifications: UL and RoHS

Before You Order

Confirm that the 4 in square box application, 1-1/4 in raised depth, and 1-gang layout match the intended installation.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Orbit 4S 1-Gang 1-1/4 in Raised Steel Device Ring Tile 41125T. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
