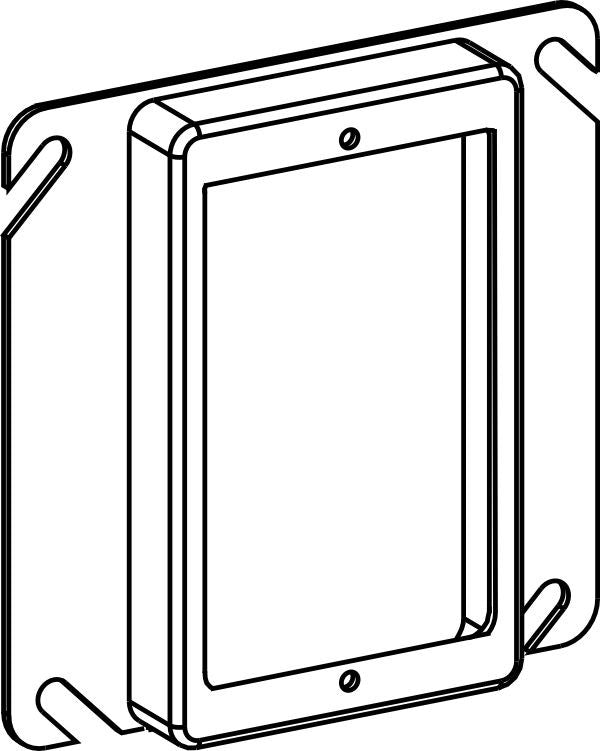

Orbit 4S 1-Gang 3/4 in Raised Steel Device Ring Tile 41075T

Product Overview

The Orbit 41075T is a 1-gang 4S device ring designed to mount electrical devices to a 4 in square box while providing a 3/4 in raised profile for tile or finished wall surfaces.

Made from 16 GA galvanized sheet steel, this tile ring is rated for dry locations and carries UL and RoHS certifications.

Key Features

• 1-gang device ring for 4 in square (4S) electrical boxes
• 3/4 in raised depth to accommodate tile and finished wall thickness
• 16 gauge sheet steel construction with galvanized finish
• Tile ring style for clean device alignment in finished walls
• Location rating: Dry location
• Certifications: UL, RoHS

What this device ring does

The Orbit 41075T provides a secure mounting flange for a single electrical device over a 4 in square (4S) box while raising the device 3/4 inch above the box plane. It creates a finished opening suitable for tile or other wall finishes and aligns switches or receptacles with the finished surface.

• Supports a 1-gang device configuration
• Raised 3/4 in to compensate for tile or thicker wall finishes
• Tile ring design yields a neat transition between device and surface

Typical applications

This tile ring is intended for use in wall device rough-in and finished installations where a raised opening is required. Common uses include commercial construction, maintenance and replacement work, and contractor stock for tile or finished-wall projects.

• 4S square box device mounting
• Tile wall installations
• Commercial and maintenance electrical work

Dimensions and materials

Confirm the physical size and construction to ensure fit with the intended box and wall finish.

• Overall dimensions: 4 in x 4 in
• Raised depth: 3/4 in
• Material: 16 GA sheet steel
• Finish: Galvanized

Installation and compatibility notes

Confirm compatibility and site requirements before ordering and installation. Use a qualified electrician for final wiring and inspection.

• Designed for mounting to 4 in square (4S) electrical boxes
• Rated for dry locations
• Verify box size, raised depth, knockout needs, and wall/finish thickness prior to installation
• Follow local electrical codes and use a qualified electrician for field wiring, grounding, device mounting, and final inspection

Before You Order

Confirm the model number and quantity required before ordering. Verify box size, wall finish thickness, and any knockout or accessory needs to ensure compatibility with the 3/4 in raised tile ring.

• Verify the 4 in square (4S) box and device fit
• Confirm 3/4 in raised depth matches finished wall or tile thickness
• Consult a qualified electrician for installation, grounding, and final inspection

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Orbit 4S 1-Gang 3/4 in Raised Steel Device Ring Tile 41075T. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
