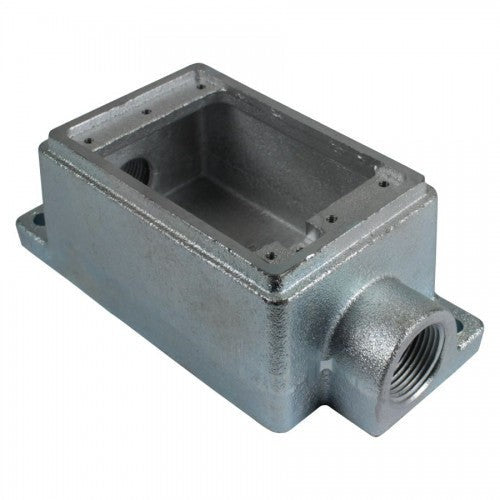

Orbit 1-Gang Malleable Iron Cast Device Box Feed-through 1 in 2 in Deep 1MFSC100

Product Overview

The Orbit 1MFSC100 is a 1-gang feed-through cast device box constructed from malleable iron for exposed conduit and surface-mounted branch-circuit installations.

This model provides a 1 in hub size and a 2 in deep body to accommodate device wiring and conduit connections in industrial and commercial wiring runs.

Key Features

• 1-gang feed-through cast device box
• Malleable iron construction for durability in exposed raceway work
• 1 in hub size for conduit connections
• 2 in deep body for typical device wiring and splices
• Surface-mount design for exposed conduit installations

Function and intended use

The Orbit 1MFSC100 is designed as a 1-gang feed-through device box for surface-mounted conduit systems. It provides a raceway termination and device mounting point for branch-circuit wiring in exposed conduit installations.

• Feed-through configuration supports conduit connections through the box.
• Used where devices (switches, receptacles) or junctions are mounted on surface raceways.

Dimensions and construction

This box is constructed from malleable iron and has a 2 in deep body. The cast construction is intended for durability in industrial and exposed-conduit environments.

• Gang: 1-gang
• Depth: 2 in
• Hub size: 1 in
• Material: malleable iron (cast)

Applications and common installation contexts

The 1MFSC100 is suitable for exposed conduit and surface-mounted raceway systems in industrial and commercial settings, as well as for device box replacement and electrical maintenance where a durable cast box is required.

• Exposed conduit installations
• Industrial wiring runs and commercial service work
• Device replacement and maintenance on surface-mounted systems

Compatibility and ordering checks

Confirm the model number and physical attributes against your project requirements before ordering. Verify hub size, gang count, opening type, enclosure rating, and mounting method to ensure compatibility with conduit and devices.

• Verify catalog/model: Orbit 1MFSC100
• Confirm hub size (1 in) and gang (1-gang) match conduit and device hardware
• Follow project drawings and applicable electrical codes during installation

Before You Order

Confirm the model number and quantity required before ordering. Ensure the hub size, gang count, and mounting method align with your conduit system and device hardware. Installation must follow project drawings and applicable electrical codes.

• Confirm catalog number: 1MFSC100
• Verify 1 in hub and 1-gang configuration match site requirements
• Check that a 2 in deep box provides the needed wiring space

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Orbit 1-Gang Malleable Iron Cast Device Box Feed-through 1 in 2 in Deep 1MFSC100. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
