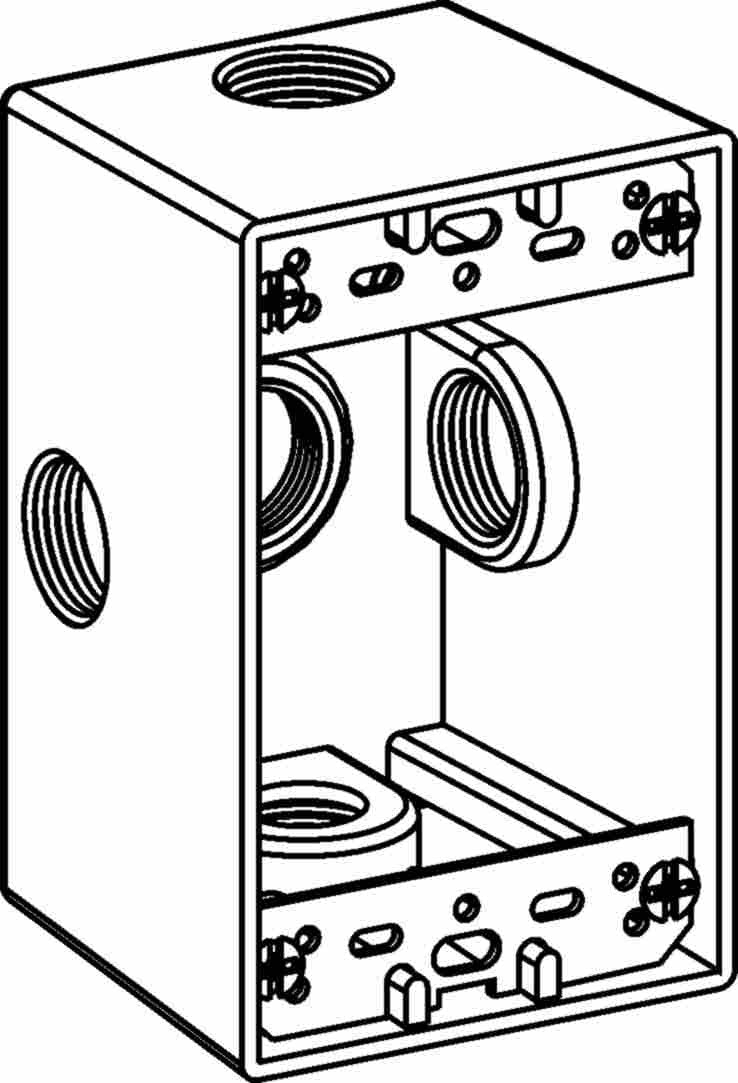

Orbit 1-Gang Gray Weatherproof Box 5 Hub 1 in 2-5/8 in Deep 1DB100-5X

Product Overview

The Orbit 1DB100-5X is a 1-gang weatherproof electrical box for exterior device mounting and exposed wiring. It is die-cast aluminum with a gray finish and includes five 1 in hubs.

This surface-mount box has a depth of 2-5/8 in and is specified for wet or damp locations.

Key Features

• 1-gang box with five hubs
• 1 in hub size
• 2-5/8 in depth
• Die-cast aluminum construction with gray finish
• Weatherproof design for wet or damp locations
• Surface-mount configuration

Function and intended use

The Orbit 1DB100-5X is intended to house a single 1-gang device while providing multiple conduit entries via its hubs. It is designed for surface-mounted exterior installations where a weatherproof box is required.

• Accepts one standard 1-gang device or cover sized for a 1-gang opening.
• Provides five hubs for routing multiple conduits or fittings into a single device location.

Dimensions and construction

Constructed of die-cast aluminum with a gray finish, this box has a depth of 2-5/8 in to accommodate device and wiring clearance in surface-mount applications.

• Material: Die-cast aluminum
• Finish: Gray
• Depth: 2-5/8 in

Hub layout and conduit connections

The 1DB100-5X includes five 1 in hubs. Confirm hub placement and count against your conduit routing plans and fittings.

• Hub count: 5
• Hub size: 1 in

Location rating and mounting

This product is specified for wet or damp locations and is intended for surface mounting on exterior walls or other surfaces where a weatherproof enclosure is needed.

• Mounting type: Surface mount
• Location rating: Wet or damp location

Typical applications

Common uses include outdoor receptacle boxes, exterior wall wiring junctions, and replacement projects requiring a weatherproof single-gang box with multiple conduit entries.

• Outdoor receptacle boxes
• Exterior wall wiring and conduit junctions
• Replacement projects and contractor stock

Before You Order

Confirm the model number, gang size, hub count and hub sizes match your conduit layout and device requirements.

• Verify the 1-gang opening and 2-5/8 in depth meet device and box fill needs.
• Confirm the five 1 in hubs align with your conduit routing and fittings.
• Ensure surface-mounting and wet/damp location rating are appropriate for the installation site.
