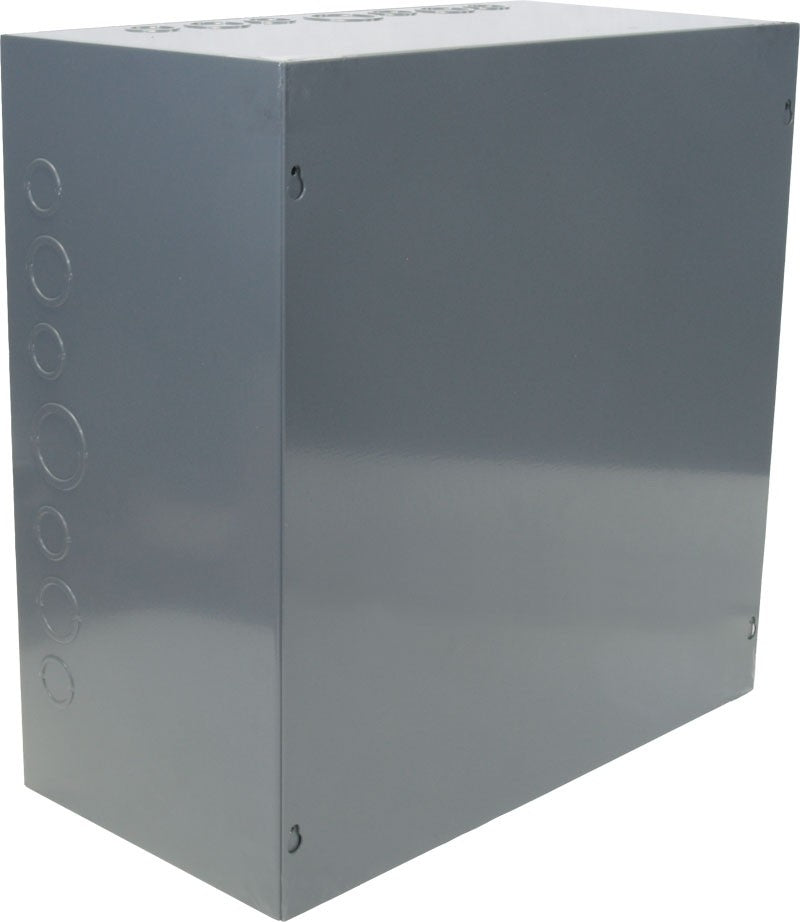

Orbit NEMA 1 Screw Cover Enclosure 16x16x6 16166

Product Overview

The Orbit 16166 is a NEMA 1 indoor screw-cover enclosure sized 16 in W x 16 in H x 6 in D for electrical junctions, pull points, control wiring and general service work.

Constructed of gauge or plated steel with a gray finish, this wall/surface-mount enclosure includes factory knockouts and a screw cover door for protected indoor installations.

Key Features

• NEMA 1 indoor location rating for general-purpose indoor protection
• Dimensions: 16 in W x 16 in H x 6 in D
• Material: gauge or plated steel with gray finish
• Screw cover door design
• Includes knockouts for conduit and cable entry
• Intended for wall or surface mounting

Function and common uses

The Orbit 16166 serves as a general-purpose indoor electrical enclosure for protecting junctions, pull points, control wiring, and service terminations. Its screw-cover door conceals wiring and devices while providing a clean finished appearance for commercial, industrial, and facility-maintenance applications.

• Typical applications: electrical rooms, junction and pull box work, control wiring, facility maintenance, new construction, service upgrades
• Provides mechanical protection and a finished indoor installation point

Construction and finish

The enclosure is fabricated from gauge or plated steel and finished in gray. The materials and finish are specified for indoor, general-purpose protection consistent with a NEMA 1 rating.

• Material: gauge or plated steel
• Finish: gray

Dimensions and mounting

Size and mounting details are provided to help confirm fit and layout for project plans.

• Overall dimensions: 16 in W x 16 in H x 6 in D
• Mounting type: wall or surface mount

Installation and compatibility notes

Confirm enclosure size, knockout locations and quantities, indoor rating, and conduit routing against your project requirements before ordering. Final field wiring and mounting should be performed by a licensed electrician in accordance with local electrical code.

• Confirm the model number and quantity required before ordering
• Use a licensed electrician for field wiring and final mounting

Before You Order

Confirm the enclosure dimensions, knockout needs, and NEMA 1 indoor suitability for your application. Verify model number and quantity required before ordering.

• Confirm enclosure size and knockout layout for your conduit and cable routing
• Ensure an indoor NEMA 1 rating meets job requirements (not rated for outdoor or wet locations)
• Use a licensed electrician for field wiring and final mounting

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Orbit NEMA 1 Screw Cover Enclosure 16x16x6 16166. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
