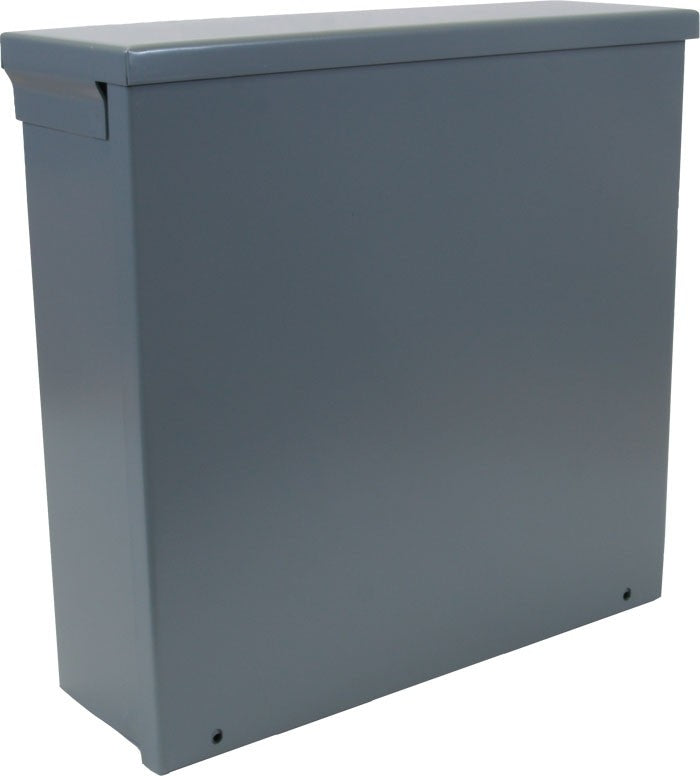

Orbit NEMA 3R Screw Cover Enclosure 16x16x4 16164R

Product Overview

The Orbit 16164R is a NEMA 3R screw-cover enclosure designed for outdoor junctions, pull points, controls and service wiring. It has a 16 in W x 16 in H x 4 in D body constructed from gauge or plated steel and a gray finish.

This unit supports wall or surface mounting and includes factory knockouts to accommodate conduit and cable entry for commercial, industrial and maintenance applications.

Key Features

• NEMA 3R outdoor location rating
• Screw-cover door design for secured access
• Gauge or plated steel construction with gray finish
• Overall dimensions: 16 in W × 16 in H × 4 in D
• Factory knockouts for conduit/cable entry
• Wall or surface mount installation

What this enclosure is for

The Orbit 16164R provides an outdoor-rated enclosement for electrical junctions, pull points, control wiring and service wiring where a NEMA 3R rating is required. The screw-cover style door secures internal equipment while permitting access for maintenance and wiring.

• Intended for junction boxes, pull boxes, control wiring and service upgrade points
• Suitable for commercial, industrial and facility maintenance environments

Size, material and finish

Confirm the enclosure's external size and construction to ensure it meets space and durability requirements.

• Exterior dimensions: 16 in (W) × 16 in (H) × 4 in (D)
• Material: gauge or plated steel
• Finish: gray

Mounting and installation notes

The 16164R is designed for wall or surface mounting and includes knockouts to simplify conduit and cable entry. Verify conduit layout, knockout placement and local electrical code requirements before installation.

• Mounting type: wall or surface mount
• Includes factory knockouts
• Use a licensed electrician for field wiring and final mounting

Typical applications

Use this enclosure where an outdoor-rated, steel junction or control box is needed. It is a contractor-oriented choice for routine electrical projects and facility maintenance.

• Electrical rooms and outdoor pull points
• Junction and pull box work
• Control wiring and service upgrades
• New construction and maintenance projects

Before You Order

Confirm the model number, quantity and that the 16 × 16 × 4 in size, knockout configuration and NEMA 3R rating meet your project's requirements before ordering. Electrical code, conduit sizing and mounting substrate should be verified ahead of installation.

• Verify enclosure size and knockout placement for your conduit and device layout
• Confirm NEMA 3R is the appropriate location rating for your application
• Use a licensed electrician for field wiring and final mounting

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Orbit NEMA 3R Screw Cover Enclosure 16x16x4 16164R. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
