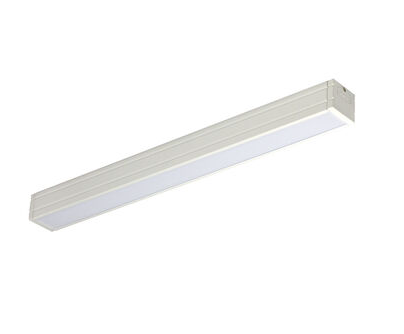

Nora Lighting NUD-6824/40W 24" Bravo FROST LED Linear, 500lm/ft, 13W, 4000K, White Finish

Product Overview

The Nora Lighting NUD-6824/40W is a 24-1/4" Bravo FROST linear LED luminaire for interior architectural lighting applications.

This SKU is specified at 4000K with a White finish, an integrated driver for 120V input, a frosted lens to reduce LED diode image, and extruded aluminum construction.

Key Features

• 24-1/4" Bravo FROST linear LED luminaire — part number NUD-6824/40W
• Light output: 978 lumens for the NUD-6824/40W model (manufacturer table)
• 120V input with self-contained dimmable electronic driver
• Extruded aluminum housing with frosted lens and symmetrical internal reflectors
• Includes two adjustable mounting brackets (0°–90°) and one end-to-end connector
• cULus listed for dry locations and covered by a 5-year limited warranty

What this luminaire does

The NUD-6824/40W is a low-profile architectural linear fixture intended to provide broad, even illumination in interior spaces. The frosted lens and internal reflectors minimize LED diode image and help distribute light uniformly.

• Intended for interior architectural lighting in commercial, retail, healthcare, and educational spaces
• Can be used individually or linked with other units using included end-to-end connector and optional accessories

Light output and electrical details

Manufacturer documentation lists the NUD-6824/40W at 978 lumens. The NUD-68 product family is specified at 500 lm/ft and notes 7W per foot as the family power metric; the SKU listing in source material shows 978 lm for the 24" 4000K model.

• SKU light output: 978 lm (NUD-6824/40W) — per manufacturer table
• Product-family metric: 500 lm/ft and 7W per foot (family specification)
• Input voltage: 120V with self-contained dimmable electronic driver
• Color temperature: 4000K
• Color rendering: 90+ CRI (product-family specification)
• Life expectancy: 50,000 hours at L70 (product-family specification)

Mounting and included accessories

Each luminaire includes adjustable mounting brackets and an end-to-end connector to join fixtures. The brackets allow 0°–90° adjustment for angling the fixture.

• Included: two adjustable mounting clips (0°–90°) and one end-to-end connector
• Fixture depth is under 1" for low-profile installations

Available accessories and linking options

The NUD-68 series has dedicated accessories for hardwiring, powering from an outlet, and joining fixtures to create continuous runs.

• NUA-602: Hardwire junction box (white)
• NUA-604/604W: 72" hardwire connector (available finishes)
• NUA-605: 72" cord and plug (available finishes)
• NUA-603: End-to-end connector (one included with each luminaire)
• NUA-606/612/624/672: Jumper cables in various lengths and finishes

Listings and warranty

The NUD-68 series is cULus listed for dry locations and is backed by a 5-year limited warranty from the manufacturer.

• Safety listing: cULus for dry locations
• Warranty: 5-year limited warranty

Before You Order

Confirm the exact SKU NUD-6824/40W and required quantity before ordering, and verify which NUA-series accessories you need for your installation.

• Confirm whether hardwiring, cord-and-plug, or jumper cables are required for your planned runs
• This fixture is listed for dry locations—confirm suitability for your installation environment

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Nora Lighting NUD-6824/40W 24" Bravo FROST LED Linear, 500lm/ft, 13W, 4000K, White Finish. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
