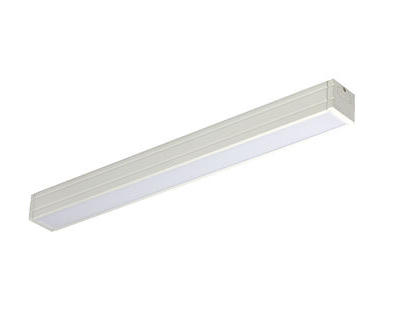

Nora Lighting NUD-6824/27W 24" Bravo FROST LED Linear, 500lm/ft, 13W, 2700K, White Finish

Product Overview

The Nora Lighting NUD-6824/27W is a 24" Bravo FROST linear LED luminaire for interior architectural lighting. It uses a frosted lens to provide even illumination and reduce visible LED diode image.

This SKU is a 120V, self-contained fixture with an internal electronic driver, white finish, 90+ CRI and a 5-year limited warranty per Nora Lighting documentation.

Key Features

• 24" Bravo FROST linear LED luminaire — Nora Lighting NUD-6824/27W
• Light output: 978 lumens total (specified as 500 lm/ft on the Nora spec sheet)
• Power: listed as 13W for the 24" unit (spec sheet shows 7W per foot source rating)
• Color temperature: 2700K (Warm White) with 90+ CRI
• 120V input with self-contained dimmable electronic driver
• Frosted lens and symmetrical internal reflectors for broad, even light
• Linkable up to 300W total run (per spec sheet); includes adjustable mounting brackets and an end-to-end connector
• cULus Listed for dry locations; 5-year limited warranty

What this luminaire does

The NUD-6824/27W provides low-profile, even architectural illumination for interior commercial, retail, healthcare, education and residential spaces. The frosted lens conceals LED diodes and internal reflectors distribute broad, uniform light.

• Intended for linear accent and general illumination
• Frosted lens reduces visible LED diode image
• Part of the NUD-68 series for project matching and continuous runs

Light output and electrical performance

This 24" Bravo FROST unit is powered from 120V and the Nora spec sheet lists the product as 7W per foot (source rating) and shows the 24"/27W SKU with a total of 978 lumens. The unit is specified with 90+ CRI and a rated life of 50,000 hours at L70.

• Lumens: 978 lm (spec sheet lists 500 lm/ft nominal)
• Wattage: 13W for the 24" unit (spec sheet source rating: 7W per foot)
• Input voltage: 120V
• Color temperature: 2700K
• Color rendering: 90+ CRI
• Rated life: 50,000 hours at L70

Mounting, linking and available accessories

Each luminaire ships with adjustable mounting brackets and an end-to-end connector. Fixtures can be joined for longer continuous runs; Nora lists several compatible accessories for power and cabling.

• Included: two adjustable mounting clips (0°–90°) and one end-to-end connector
• Linkable up to 300W total run (per Nora spec sheet)
• Available Nora accessories include: hardwire junction box (NUA-602), 72" hardwire connector (NUA-604), cord & plug (NUA-605), jumper cables (NUA-606/612/624/672) and additional end-to-end connectors

Listings and warranty

The NUD-6824/27W is cULus listed for dry locations and covered by Nora Lighting’s 5-year limited warranty as shown in the manufacturer documentation.

• Safety listing: cULus for dry locations
• Warranty: 5-year limited warranty

Size and construction

The fixture has an extruded aluminum housing with a frosted lens and a low profile under 1" depth per the Nora spec sheet. Catalog lists the overall length for the 24" model as 24-1/4".

• Nominal length: 24 in (catalog lists 24-1/4" overall length)
• Profile depth: less than 1"
• Housing: extruded aluminum with frosted lens

Before You Order

Confirm the exact model and required quantity before ordering; this page covers the single SKU NUD-6824/27W (24" Bravo FROST, 2700K, white finish).

• Verify required accessories for linking or power (NUA-series accessories listed by Nora).
• Confirm mounting method and clearance for the under-1" profile.
• Plan total continuous run wattage to remain within the 300W maximum listed by the manufacturer.
