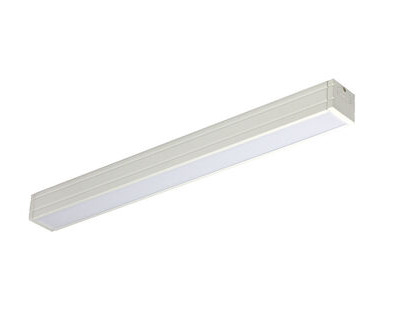

Nora Lighting NUD-6818/27W 18" Bravo FROST LED Linear, 500lm/ft, 10W, 2700K, White Finish

Product Overview

The Nora Lighting NUD-6818/27W is an 18" Bravo FROST linear LED luminaire providing warm 2700K illumination with a frosted lens and white finish.

Each unit includes two adjustable mounting brackets and an end-to-end connector and contains a self-contained dimmable electronic driver for 120V input. The series is linkable up to a 300W total run.

Key Features

• 18" Bravo FROST linear LED luminaire — model NUD-6818/27W
• Light output: 757 lumens (manufacturer SKU table)
• LED source: 7 W per foot (manufacturer specification for series)
• Color temperature: 2700K with 90+ CRI
• Self-contained dimmable electronic driver; 120V input
• Extruded aluminum housing with frosted lens; fixture depth under 1"
• Includes two adjustable mounting clips (0°–90°) and one end-to-end connector
• cULus listed for dry locations; 5-year limited warranty

What this luminaire is for

The NUD-6818/27W Bravo FROST is intended for linear architectural lighting in commercial, retail, healthcare, education and modern interior spaces where warm, even illumination and a low-profile fixture are required.

• Surface-mounted linear applications
• Frosted lens conceals LED diode image for smooth light distribution
• Suitable where 2700K warm-white appearance and high color rendering (90+ CRI) are desired

Light output and efficiency

The NUD-6818/27W SKU is listed at 757 lumens total. The Bravo FROST series documentation specifies an LED source density of 7 W per foot and lists 500 lm/ft as a series nominal value.

• SKU lumen: 757 lm (NUD-6818/27W per manufacturer table)
• LED source density: 7 W/ft (manufacturer series specification)
• Color temperature: 2700K; Color Rendering Index: 90+

Electrical and dimming details

Each Bravo FROST luminaire contains a self-contained electronic driver for 120V input. The manufacturer lists the driver as dimmable using electronic low-voltage dimming.

• Input voltage: 120V
• Dimming: Electronic low-voltage dimming (integral driver per manufacturer)
• Life expectancy: 50,000 hours @ L70 (manufacturer rating)

Mounting, linking, and accessories

The fixture ships with two adjustable mounting brackets (0°–90°) and an end-to-end connector. Bravo FROST fixtures can be linked; the series maximum run capacity is 300W (manufacturer specification).

• Included: (2) adjustable mounting brackets and (1) end-to-end connector
• Linkable up to 300W total run (manufacturer specification)
• Accessories available from the manufacturer include junction box, hardwire connectors, cord & plug, and jumper cables (refer to official accessory part numbers and finishes)

Before You Order

Confirm the model number and quantity required; this page describes the single SKU NUD-6818/27W (18" Bravo FROST, 2700K, white).

• One end-to-end connector and mounting brackets are included; verify other accessories needed for your installation (junction box, hardwire connector, jumper cables, or cord & plug).

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Nora Lighting NUD-6818/27W 18" Bravo FROST LED Linear, 500lm/ft, 10W, 2700K, White Finish. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
