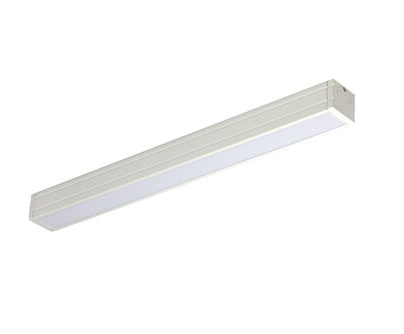

Nora Lighting NUD-6812/50W 12" Bravo FROST LED Linear, 500lm/ft, 7W, 5000K, White Finish

Product Overview

The Nora Lighting NUD-6812/50W is a 12" Bravo FROST low-profile linear LED luminaire specified at 500 lumens per foot and 7 watts per foot with a 5000K color temperature and white finish.

The fixture has an extruded aluminum housing with a frosted lens, includes two adjustable mounting clips and an end-to-end connector, and contains a self-contained driver for 120V input.

Key Features

• Nominal length: 12" (manufacturer overall length listed as 12-5/8")
• Light output: 500 lm per foot at 7W per foot
• Color temperature: 5000K; Color Rendering Index: 90+ CRI
• Extruded aluminum housing with frosted lens to reduce LED diode image
• Integral self-contained electronic driver for 120V input; dimming via electronic low-voltage control per manufacturer
• Includes two adjustable mounting clips (0°–90°) and one end-to-end connector
• Linkable up to 300W total per manufacturer specifications
• cULus listed for dry locations; 5-year limited warranty

What this luminaire is for

The NUD-6812/50W Bravo FROST is a low-profile architectural linear LED luminaire intended for interior linear lighting applications where a cool white (5000K) output and discreet profile are desired.

• Architectural linear illumination and continuous runs where the NUD series is specified
• SKU-specific replacement and project matching when NUD-6812/50W is required

Light output and performance

This 12" model is specified at 500 lumens per foot and 7 watts per foot with a listed 90+ CRI and 5000K color temperature. The manufacturer lists an expected life of 50,000 hours at L70.

• Rated life: 50,000 hours at L70 (manufacturer spec)
• Frosted lens and symmetrical internal reflectors for even illumination and reduced LED image

Electrical and dimming

Each Bravo FROST luminaire includes its own self-contained electronic driver and is specified for 120V input. The manufacturer indicates support for electronic low-voltage dimming.

• Input voltage: 120V
• Dimming: electronic low-voltage dimming (driver included) per manufacturer
• Maximum linkable run: manufacturer lists 300W maximum combined for linked fixtures

Mounting, dimensions and accessories

The fixture has an extruded aluminum housing with a frosted lens. Two adjustable mounting brackets (0°–90°) and an end-to-end connector are included. Manufacturer dimensions list the 12" model length as 12-5/8".

• Included: (2) adjustable mounting clips and (1) end-to-end connector
• Nominal length: 12" (manufacturer overall length 12-5/8")
• Depth/height: manufacturer shows less than 1" depth; height dimension noted as 1-1/8" in spec diagram
• Available accessories listed by manufacturer: NUA-602 (junction box), NUA-604/605 (connectors/cords), NUA-606/612/624/672 (jumper cables), NUA-603 end-to-end connector, NUA-609 adjustable mounting brackets

Listings and warranty

The NUD-6812/50W is cULus listed for dry locations and is covered by a 5-year limited warranty per the manufacturer.

• Listing: cULus for dry locations
• Warranty: 5-year limited warranty

Before You Order

Confirm the exact model number (NUD-6812/50W), required quantity and desired CCT before ordering.

• Verify you have a 120V supply and confirm the intended dimming method (manufacturer lists electronic low-voltage dimming compatibility).
• Select required accessories (junction box, connectors or jumper cables) if planning continuous runs.
