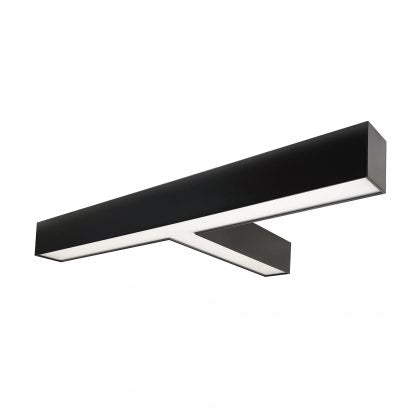

Nora Lighting NLUD-T334B "T" Shaped L-Line LED Indirect/Direct Linear, 5027lm / Selectable CCT, Finish

Product Overview

The Nora Lighting NLUD-T334B is a T-shaped L-Line linear LED luminaire configured for indirect/direct distribution with 5027 lumens (manufacturer data for the NLUD-T indirect/direct configuration). It is suited to architectural interiors such as commercial, retail, healthcare and education spaces.

This SKU is the Black finish version of the NLUD-T series. The NLUD family uses an extruded aluminum housing with a diffused polycarbonate lens, includes built-in switches for light direction and CCT selection, and supports daisy-chaining with accessory brackets and connectors (accessories ordered separately).

Key Features

• 5027 lm — indirect/direct configuration for NLUD-T (manufacturer data)
• Selectable CCT per direction: 3000K / 3500K / 4000K (preset to 3000K)
• Selectable direction per built-in switches: direct only / indirect & direct / indirect only (preset to indirect & direct)
• Extruded aluminum housing with diffused polycarbonate lens
• 120–347V input and 0–10V dimming (manufacturer notes dimming to 15% for best performance)
• DLC listed and cETLus listed for damp locations; 80+ CRI; 5-year limited warranty
• Black finish — SKU NLUD-T334B

Function and light distribution

The NLUD-T334B is the T-connector model in the NLUD L-Line family and is documented by the manufacturer to provide an indirect/direct distribution totaling 5027 lumens for that configuration.

Light is emitted through a diffused polycarbonate lens intended to provide symmetrical distribution for general interior illumination.

• Distribution: Indirect/Direct (selectable with integral switches)
• Lens: Diffused polycarbonate for even output
• Applications: commercial, retail, healthcare and education interiors

Electrical and dimming

NLUD luminaires accept 120–347V input and support 0–10V dimming. Manufacturer documentation specifies 0–10V dimming down to 15% as the recommended range and a maximum wattage per continuous run of 420W.

• Input voltage: 120–347V
• Dimming: 0–10V (manufacturer notes down to 15% for best performance)
• Maximum wattage per run: 420W

CCT and onboard controls

Each fixture includes integral switches to select both the direction of light (direct only, indirect & direct, indirect only) and the CCT for each direction. CCT options are 3000K, 3500K and 4000K, with CCT switches preset to 3000K at the factory.

• Selectable CCT: 3000K / 3500K / 4000K
• Per-direction CCT and direction switches included (factory presets noted)
• CRI: 80+

Mounting, connectors and accessories

NLUD fixtures can be wall mounted or pendant mounted; mounting kits and pendant/power kits are sold separately and are required for those mounting methods. The family supports multi-directional layouts when used with the appropriate NLUD connectors, brackets and harnesses (all accessories ordered separately).

• Mounting: Wall or pendant (mounting kits ordered separately)
• Continuous runs and multi-directional layouts require brackets/couplers and may require a mounting kit at each end for pendant installations
• Accessory examples (ordered separately): NLUD-PCC, NLUD-CC, NLUD-PMC, NLUD-PMC, wall mount kits for 2', 4', 8' sizes

Listings, operating range and warranty

Manufacturer documentation lists DLC and cETLus for damp locations, FCC and ADA compliance, an operating temperature range of -20°C to 50°C, and a 5-year limited warranty. Photometric reports and CCT multipliers are provided in the manufacturer data; delivered lumen output will vary with CCT selection and specific configuration.

• Listings: DLC listed, cETLus listed for damp locations, FCC compliant, ADA compliant
• Operating temperature: -20°C to 50°C
• Warranty: 5-year limited warranty

Before You Order

Confirm the exact model number (NLUD-T334B for Black) and required quantity. Mounting kits and accessories (pendant power kits, wall mount kits, continuous-run brackets, couplers, etc.) are sold separately and may be required for your installation.

• Verify SKU and finish: NLUD-T334B = Black (other finishes available as separate SKUs).
• Select mounting method (wall or pendant) and order the appropriate mounting kit(s) separately.
• If planning continuous or multi-directional runs, confirm accessory requirements and ensure total wattage per run does not exceed 420W.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Nora Lighting NLUD-T334B "T" Shaped L-Line LED Indirect/Direct Linear, 5027lm / Selectable CCT, Finish. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
