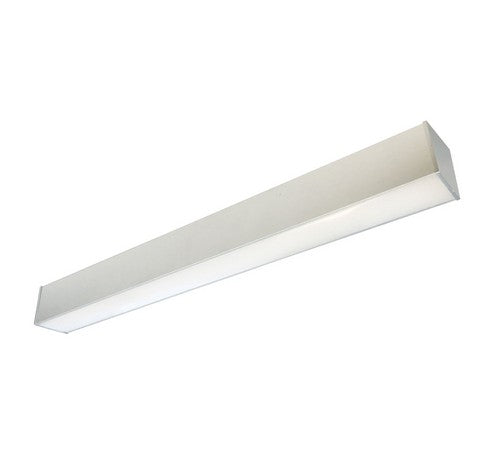

Nora Lighting NLIN-21035A 2' L-Line LED Direct Linear w/ Dedicated CCT, 2100lm / 3500K, Aluminum Finish

Product Overview

The Nora Lighting NLIN-21035A is a 2-foot L-Line LED direct linear luminaire with a dedicated 3500K color temperature and nominal 2100 lm light output. It features an extruded aluminum housing and a diffused polycarbonate lens for symmetrical, uniform illumination.

This fixture accepts surface or pendant mounting kits and is rated for 120–277V input with 0–10V dimming according to the manufacturer specification for the NLIN series.

Key Features

• 2' L-Line LED linear luminaire — NLIN-21035A (actual length: 24")
• Nominal light output: 2100 lm (NLIN-2 package)
• Color temperature: 3500K; Color Rendering Index: 80+ CRI
• Construction: one-piece extruded aluminum housing with diffused polycarbonate lens; aluminum finish
• Electrical: 120–277V input; 0–10V dimming
• Listings and warranty: cULus Listed for Damp Location; 5-year limited warranty
• UPC: 732180004348

Function and light distribution

The NLIN-21035A provides symmetrical light distribution through a diffused polycarbonate lens to produce even illumination along its length. It is part of the L-Line series designed for linear ambient lighting with a continuous visual appearance.

• Nominal lumen package for NLIN-2 family: 2100 lm (manufacturer specification)
• Diffused lens for uniform output and reduced direct glare
• Series supports connection via L, T, and X connectors for continuous runs (connectors sold as part of the series accessories)

Recommended applications

The manufacturer lists commercial, retail, healthcare, and education environments as typical applications for the L-Line series where a clean linear appearance and even illumination are desired.

• Typical uses include general ambient lighting, corridors, open office areas, retail aisles, and classrooms
• Available for surface or pendant mounting to suit different ceiling conditions

Electrical and dimming

The NLIN series is specified for 120–277V input and supports 0–10V dimming per the product documentation. Confirm specific driver and control compatibility for your project's control system.

• Input Voltage: 120–277V
• Dimming: 0–10V control (manufacturer notes 0–10V down to 10%)
• This SKU: 3500K color temperature, 80+ CRI

Mounting and mounting kits

NLIN fixtures include an extruded slot for surface or pendant mounting. Mounting kits and power/pendant kits are available separately from the NLIN accessory list.

• Surface mount: junction box cover and surface mount kits available
• Pendant mounting: manufacturer recommends two hanging points per fixture when pendant mounting; power mounting kits include two hanging points
• Power must be supplied at designated power feed locations; the system is not to be powered at L, T, or X connectors per manufacturer guidance

Dimensions and construction details

The NLIN-21035A is the 2' member of the L-Line family with an actual length of 24". The housing is extruded aluminum with solid end caps and a diffused polycarbonate lens for a continuous linear look.

• Actual length: 24" (NLIN-2 family)
• Housing: one-piece extruded aluminum with solid end caps
• Lens: diffused polycarbonate
• Operating temperature range for the series: 0°C to 30°C (manufacturer series rating)

Before You Order

Confirm the model number NLIN-21035A and required quantity. Review mounting kit and power feed requirements for continuous runs before ordering.

• Verify preferred mounting method (surface or pendant) and order the appropriate NLIN mounting kit separately (examples from the series: NLIN-JBCA, NLIN-CCA, NLIN-PCC).
• Confirm 0–10V dimming compatibility with your control system.
• Maximum recommended continuous run length for the series: 80' — plan power feeds and connectors accordingly.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Nora Lighting NLIN-21035A 2' L-Line LED Direct Linear w/ Dedicated CCT, 2100lm / 3500K, Aluminum Finish. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
