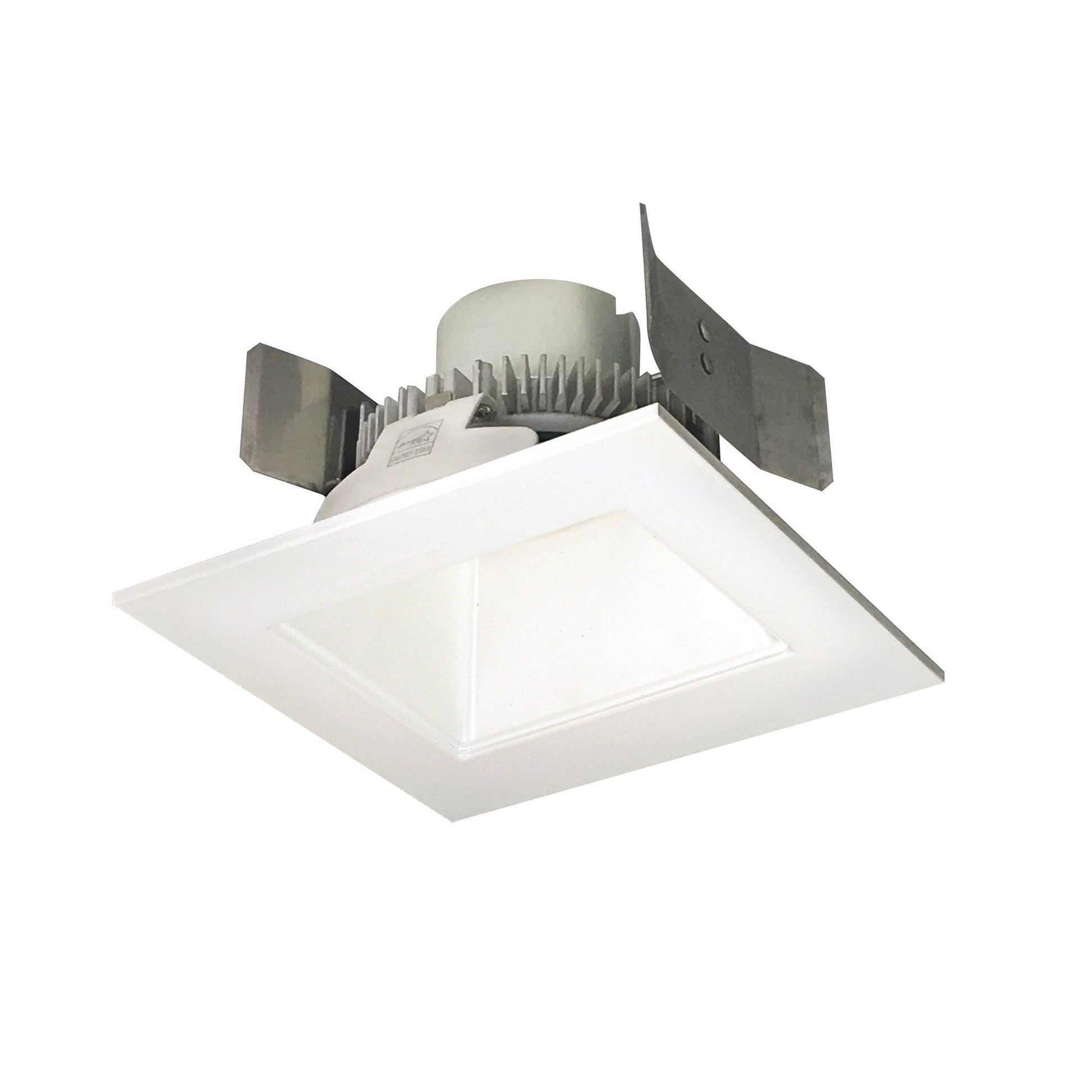

Nora Lighting NLCBC2-55640WW/10LE4EM 5" Cobalt Click Square Retrofit Reflector with Square Aperture, 1000lm / 12W, 4000K, White Reflector / White Flange 120-277V input; Phase or 0-10V dimming, Pre-Wired for Emergency

Product Overview

The Nora Lighting NLCBC2-55640WW/10LE4EM is a 5-inch square retrofit reflector downlight with a square aperture that delivers 1000 lumens at 12 W. It accepts 120–277 V input, supports phase or 0–10V dimming, and is pre-wired for emergency operation.

Designed for code-required egress and commercial applications, the unit pairs a white reflector and white flange with the NLCBC2-556 series Cobalt Click square retrofit platform.

Key Features

• Output: 1000 lumens at 12 W
• Color temperature: 4000 K (neutral white)
• Input voltage: 120–277 V multi‑volt
• Dimming: Phase or 0–10V control
• Form factor: 5 in square aperture, square trim (white reflector / white flange)
• Emergency: Pre-wired for emergency application

What this product does

Direct answer: The NLCBC2-55640WW/10LE4EM is a 5-inch square retrofit reflector downlight that provides 1000 lumens of 4000 K light at 12 W and is pre-wired for emergency operation.

This unit is built on Nora’s Cobalt Click square retrofit platform and is intended for applications where code-required egress or supplemental emergency illumination is necessary.

• Nominal delivered light: 1000 lm
• Power: 12 W
• Pre-wired for emergency to integrate into emergency circuits

Electrical and dimming requirements

Direct answer: The fixture accepts 120–277 V input and supports phase or 0–10V dimming.

Use compatible phase or 0–10V control gear and wiring practices appropriate to the building’s control system and local electrical code.

• Input voltage range: 120–277 V
• Dimming: Phase control or 0–10V dimming (requires compatible dimmer/drivers)

Typical applications

Direct answer: This model is suitable for code-required egress and emergency illumination in commercial interiors.

Common installations include corridors, stairwells, and other areas where a compact 5-inch square aperture is preferred for tight spacing and modular ceiling layouts.

• Code-required egress and exit lighting
• Corridors and stairwells
• Commercial building interior retrofit projects

Form factor and trim details

Direct answer: The product has a 5 in square aperture with a square trim and white reflector/white flange finish.

The compact square aperture is intended for retrofit housings and layouts where smaller, closely spaced fixtures are required.

• Aperture size: 5 in (square)
• Trim shape: Square
• Finish: White reflector / white flange

Before You Order

Confirm the model number and quantity required before ordering. Verify mounting orientation, required emergency runtime, and compatibility with the existing retrofit housing and control system at the job site.

• Confirm aperture/trim size (5 in square) fits the existing opening or housing.
• Verify required emergency runtime and that the pre-wired emergency configuration meets local code and project specifications.
• Ensure control compatibility for phase or 0–10V dimming with the building’s dimming system.
