Nora Lighting NHAPIC-3R15L14040DP 3" Apollo Round IC Airtight New Construction Housing w/ 1.25" to 1.625" Ceiling Collar, 1000lm / 10W, 4000K, Narrow Flood Optic, 120V; Phase Dimming
Description
Product Overview

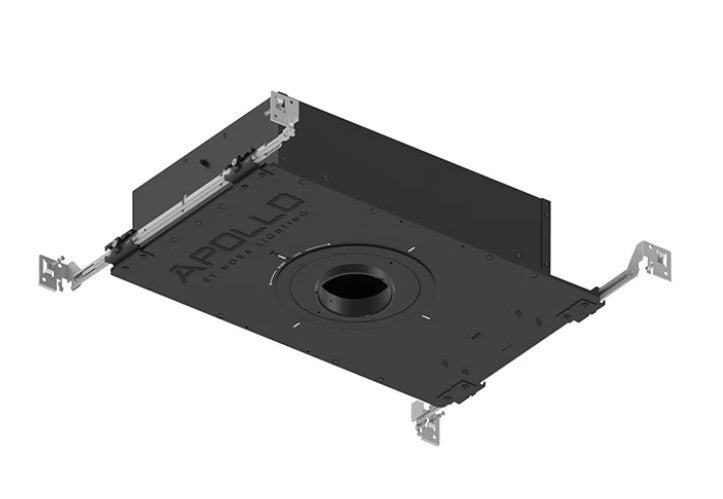

The Nora Lighting NHAPIC-3R15L14040DP is a 3-inch round IC airtight recessed housing for new-construction ceilings. It operates at 120 V and delivers 1000 lumens at 10 W, with a 4000 K color temperature and Narrow Flood optic.
The housing supports phase dimming and has an adjustable ceiling collar for finished-ceiling thicknesses from 1.25 to 1.625 inches.
Key Features
- 3-inch round aperture with a Narrow Flood optic
- IC airtight housing can contact ceiling insulation
- New-construction configuration
- 1000 lm output at 10 W and 4000 K
- 120 V operation with phase dimming
- Adjustable ceiling collar for 1.25–1.625-inch finished-ceiling thicknesses
Light Output and Narrow Flood Optic
The NHAPIC-3R15L14040DP produces 1000 lumens at 10 W, with a 4000 K color temperature. Its Narrow Flood optic shapes the beam for focused accent lighting.
New-Construction IC Airtight Housing
This 3-inch round housing is designed for new-construction installation before the ceiling is finished. Its IC rating allows the housing to sit in direct contact with ceiling insulation.
Ceiling Collar Fit and Phase Dimming
The adjustable ceiling collar accommodates finished-ceiling thicknesses from 1.25 to 1.625 inches. The housing uses 120 V power and supports phase dimming.
Before You Order
Confirm the finished-ceiling thickness is within the 1.25 in to 1.625 in collar range. For dimming, pair the housing with a phase-control dimmer rated for the load.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Nora Lighting NHAPIC-3R15L14040DP 3" Apollo Round IC Airtight New Construction Housing w/ 1.25" to 1.625" Ceiling Collar, 1000lm / 10W, 4000K, Narrow Flood Optic, 120V; Phase Dimming. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Nora Lighting |
|---|---|
| Model / SKU | NHAPIC-3R15L14040DP |
| Product Type | Recessed housing |
| Series | NHAPIC-3R1 |
| Aperture Size | 3 in |
| Trim Shape | Round |
| Lumens | 1000 lm |
| Wattage | 10 W |
| Voltage | 120 V |
| Color Temperature | 4000 K |
| Optic | Narrow Flood |
| Dimming Control Method | Phase dimming |
| Housing Rating | IC Airtight |
| Construction Type | New Construction |
| Ceiling Collar Range | 1.25 in to 1.625 in |
