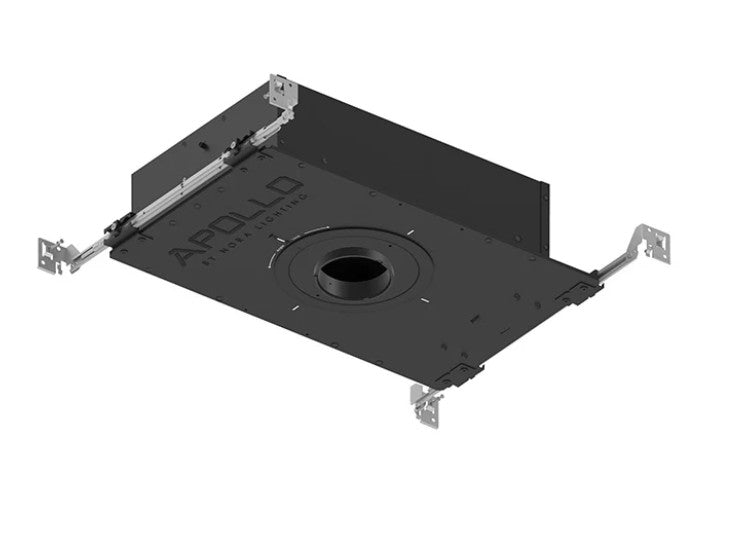

Nora Lighting NHAPIC-3R10L13540DC 3" Apollo Round IC Airtight New Construction Housing w/ 0.875" to 1.25" Ceiling Collar, 1000lm / 10W, 3500K, Narrow Flood Optic, 120-277V; 0-10V Dimming

Product Overview

The Nora Lighting NHAPIC-3R10L13540DC is a 3-inch round new‑construction recessed housing designed for IC‑rated installations. It delivers 1000 lumens at 10 W with a narrow flood optic and operates on 120–277V with 0–10V dimming.

This Apollo series housing includes an adjustable 0.875"–1.25" ceiling collar to accommodate a range of finished‑ceiling thicknesses and is sized for small‑aperture recessed lighting layouts.

Key Features

• IC‑rated, airtight housing suitable for contact with ceiling insulation
• New‑construction design for installation before the finished ceiling
• 1000 lm output at 10 W (3500 K color temperature)
• 120–277V multi‑volt input
• 0–10V dimming control
• Narrow Flood optic
• Adjustable ceiling collar: 0.875" to 1.25" finished‑ceiling thickness
• 3" round aperture

What this housing does

The NHAPIC-3R10L13540DC is a 3" round recessed new‑construction housing intended for installations where an IC‑rated, airtight housing is required. It provides a small aperture option for recessed lighting applications.

• IC‑rated, airtight construction allows placement in contact with ceiling insulation
• Designed for new‑construction installation (mount before ceiling finish)

Electrical and dimming

The housing accepts 120–277 V input and uses 0–10V dimming control. Use a 0–10V dimmer that is rated for the connected load.

• Input voltage: 120–277 V
• Dimming type: 0–10V (requires compatible dimmer)

Mounting and ceiling fit

This product is intended for new‑construction installation. The adjustable ceiling collar covers finished‑ceiling thicknesses within the specified range.

• Construction type: New construction
• Ceiling collar adjustment range: 0.875" to 1.25" (finished‑ceiling thickness)

Light output and optic

The housing is specified with a nominal output of 1000 lumens at 10 W and a color temperature of 3500 K. The listed optic for this SKU is Narrow Flood.

• Output: 1000 lm at 10 W
• Color temperature: 3500 K
• Optic: Narrow Flood

Key specifications

Core technical details for this SKU.

• Brand: Nora Lighting
• Model / SKU: NHAPIC-3R10L13540DC
• Aperture size: 3 in round
• Housing rating: IC Airtight
• Voltage: 120–277 V
• Dimming: 0–10V
• Lumens: 1000 lm
• Wattage: 10 W
• Color temperature: 3500 K
• Construction: New construction
• Ceiling collar range: 0.875" to 1.25"

Before You Order

Verify finished ceiling thickness fits the 0.875" to 1.25" collar range and confirm the project wiring and dimming method are compatible with the listed voltage and 0–10V control.

• Confirm finished ceiling thickness is between 0.875" and 1.25"
• Confirm project wiring supports 120–277 V and use a compatible 0–10V dimmer

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Nora Lighting NHAPIC-3R10L13540DC 3" Apollo Round IC Airtight New Construction Housing w/ 0.875" to 1.25" Ceiling Collar, 1000lm / 10W, 3500K, Narrow Flood Optic, 120-277V; 0-10V Dimming. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
