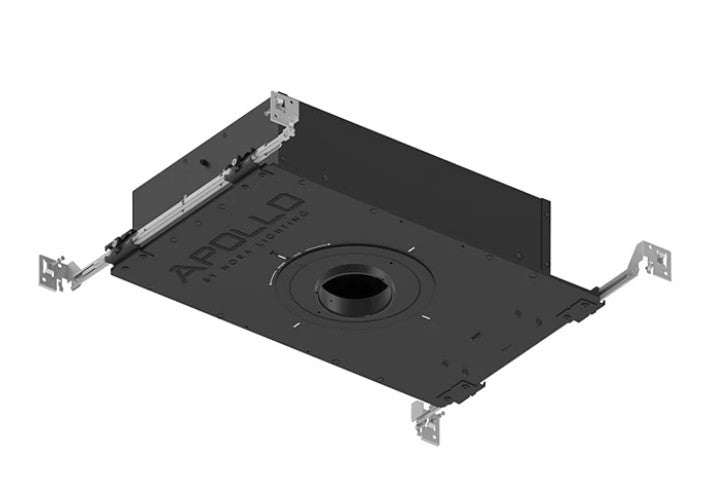

Nora Lighting NHAPIC-3R05L13540DP 3" Apollo Round IC Airtight New Construction Housing w/ 0.5" to 0.875" Ceiling Collar, 1000lm / 10W, 3500K, Narrow Flood Optic, 120V; Phase Dimming
Description
Product Overview
The Nora Lighting NHAPIC-3R05L13540DP is a 3-inch round recessed housing for new-construction ceilings. It is rated IC Airtight and delivers 1000 lm at 10 W on 120 V.
This model has a 3500 K color temperature, Narrow Flood optic and phase dimming. Its adjustable ceiling collar accommodates finished ceiling thicknesses from 0.5 in to 0.875 in.
Key Features
- 3-inch round recessed housing for new-construction installation
- IC Airtight rating; the housing can be in direct contact with ceiling insulation
- 1000 lm at 10 W, 120 V and 3500 K
- Narrow Flood optic and phase dimming
- Adjustable ceiling collar for 0.5 in to 0.875 in ceiling thickness
New-Construction Housing Configuration
The NHAPIC-3R05L13540DP is built for new-construction installation, with the housing mounted before the ceiling is finished. Its aperture is 3 inches and its trim shape is round.
IC Airtight Rating
This housing is rated IC Airtight and can be in direct contact with ceiling insulation.
Light Output, Optic and Dimming
The model delivers 1000 lm at 10 W on 120 V, with a 3500 K color temperature. Its Narrow Flood optic shapes the beam for focused accent lighting, and it supports phase dimming.
Ceiling Collar Range
The adjustable collar is specified for finished ceiling thicknesses from 0.5 in to 0.875 in. Check the ceiling thickness against this range when selecting the housing.
Before You Order
Confirm that the finished ceiling thickness is within the 0.5 in to 0.875 in collar range.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Nora Lighting NHAPIC-3R05L13540DP 3" Apollo Round IC Airtight New Construction Housing w/ 0.5" to 0.875" Ceiling Collar, 1000lm / 10W, 3500K, Narrow Flood Optic, 120V; Phase Dimming. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Nora Lighting |
|---|---|
| Model / SKU | NHAPIC-3R05L13540DP |
| Series | NHAPIC-3R0 |
| Product Type | Recessed housing |
| Construction Type | New construction |
| Aperture Size | 3 in |
| Trim Shape | Round |
| Housing Rating | IC Airtight |
| Lumens | 1000 lm |
| Wattage | 10 W |
| Voltage | 120 V |
| Color Temperature | 3500 K |
| Optic | Narrow Flood |
| Dimming Control Method | Phase dimming |
| Ceiling Collar Range | 0.5 in to 0.875 in |
