MW Lighting MWRAP-12/16/20/25W-5CCT 12/16/20/25W Selectable Wraparound Light 5-CCT Selectable

Product Overview

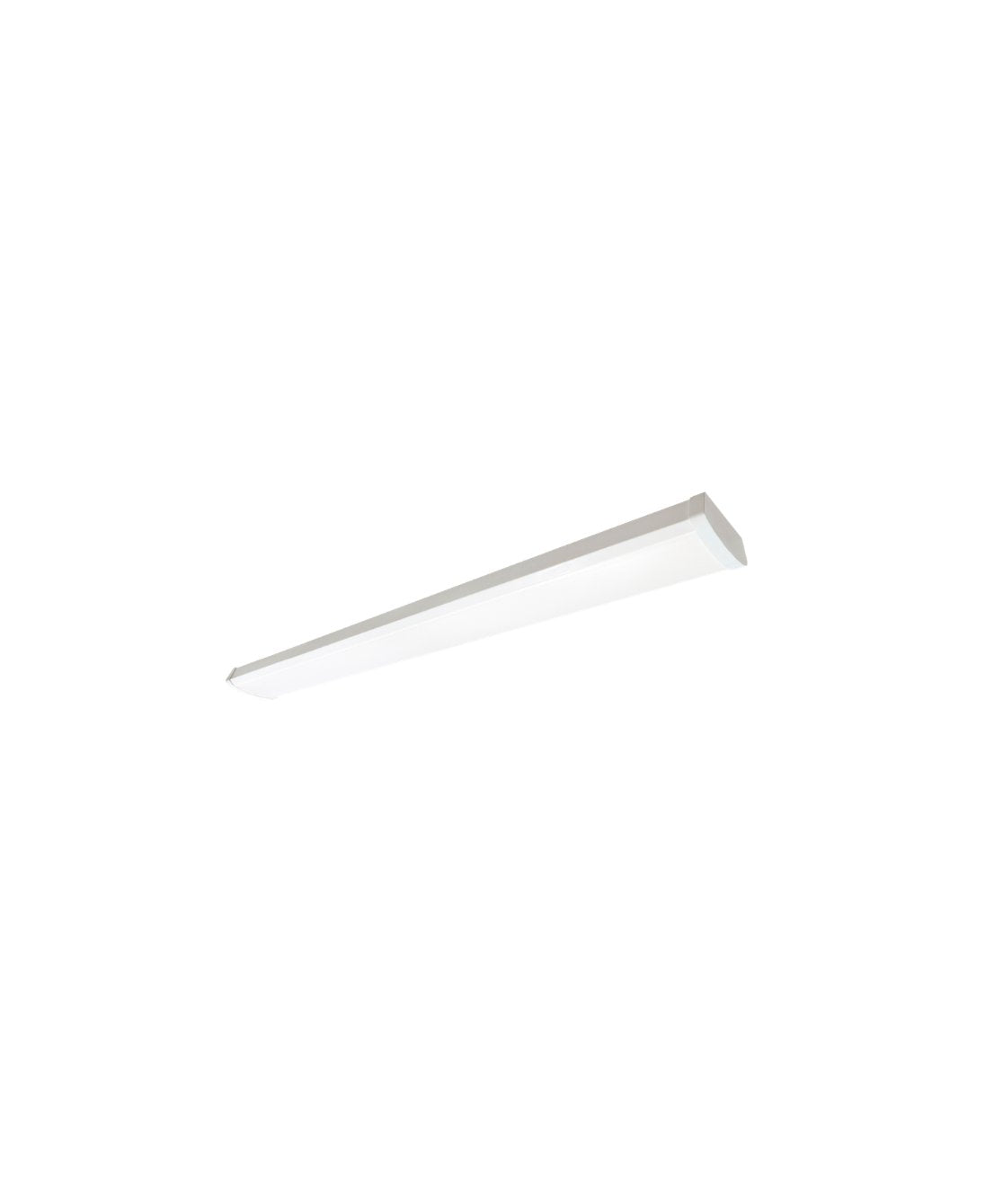

The MW Lighting MWRAP-12/16/20/25W-5CCT is a 2 ft LED wraparound light with selectable wattage and color temperature for commercial and utility lighting.

Choose from 12W, 16W, 20W or 25W settings, with corresponding listed outputs of 1,500, 2,000, 2,500 or 3,000 lumens. The fixture operates on 120-277V and supports 0-10V dimming.

Key Features

• Field-selectable 12W, 16W, 20W or 25W output
• Selectable 3000K, 3500K, 4000K, 5000K or 6500K color temperature
• Listed output range of 1,500 to 3,000 lumens and 80+ CRI
• 120-277V input and 0-10V dimming
• Surface, suspended or continuous-row mounting configurations
• UL and DLC

Selectable Wattage and Color Temperature

The MWRAP-12/16/20/25W-5CCT lets the installer select one of four wattage settings and one of five color temperatures. The listed lumen outputs correspond to the wattage settings: 1,500 lumens at 12W, 2,000 at 16W, 2,500 at 20W and 3,000 at 25W.

• Wattage settings: 12W, 16W, 20W or 25W
• Color temperatures: 3000K, 3500K, 4000K, 5000K or 6500K
• Color rendering: 80+ CRI

Input Voltage and Dimming

This wraparound light accepts 120-277V input and supports 0-10V dimming. Use a 0-10V dimmer when dimming the fixture.

Mounting and Row Configuration

The fixture supports surface, suspended or continuous-row configurations. Confirm the fixture length and mounting approach against the planned lighting run.

Where This Wraparound Light Can Be Used

The MWRAP is intended for general lighting in commercial and utility spaces. Listed applications include shops, warehouses, corridors and strip-light retrofit projects.

Before You Order

Confirm the model number and quantity required before ordering. Check the planned fixture length, mounting configuration and dimming control for the installation.
