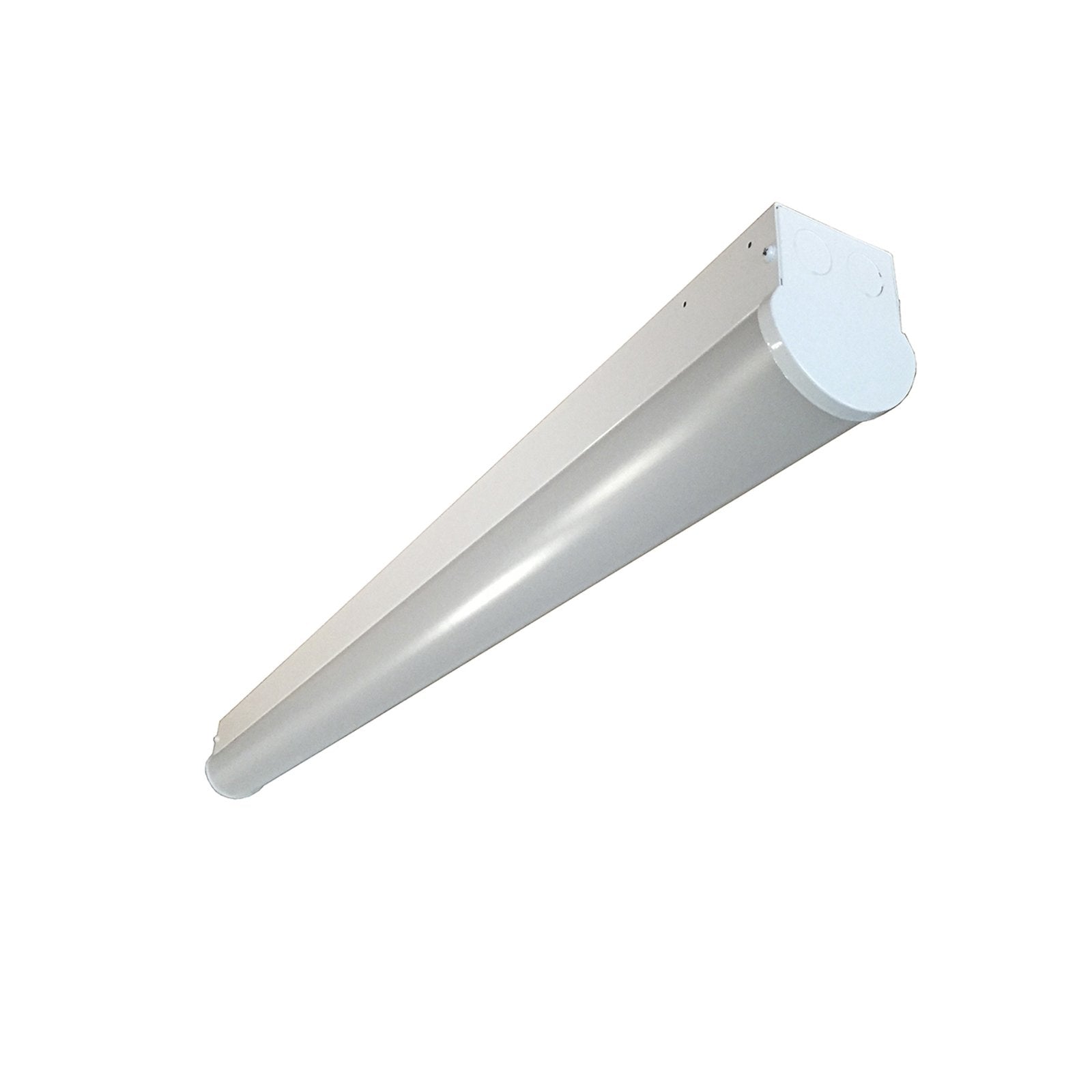

MW Lighting MST8FT-65/75/90W-3CCT 65/75/90W Selectable Strip Light 3-CCT Selectable

Product Overview

The MW Lighting MST8FT-65/75/90W-3CCT is an 8 ft LED strip light with field-selectable wattage (65/75/90W) and color temperature (3500K/4000K/5000K).

Outputs range from 8,450 to 11,700 lumens depending on the selected wattage. The fixture accepts 120–277V input, supports 0–10V dimming, and is UL and DLC listed for commercial and utility linear lighting applications.

Key Features

• Field-selectable wattage: 65W, 75W, or 90W on site
• Field-selectable color temperature: 3500K, 4000K, or 5000K
• Light output: 8,450 lm (65W) | 9,750 lm (75W) | 11,700 lm (90W)
• Universal 120–277V input and 0–10V dimming
• 80+ CRI
• Mountable as surface, suspended, or continuous-row linear lighting
• UL and DLC listed

What this fixture does

The MST8FT-65/75/90W-3CCT is an 8 ft linear LED strip intended for continuous-row and general-purpose lighting in commercial, utility, and industrial spaces. Its selectable wattage and color temperature let a single SKU serve multiple light-level and color requirements.

• Suitable for continuous-row linear lighting in shops, warehouses, corridors, and utility areas
• Designed for surface, suspended, or continuous-row mounting

Light output and selectable performance

This model provides three selectable lumen outputs tied to on-site wattage selection. Choose the setting that meets the project's target illuminance without changing fixtures.

• 65W → 8,450 lumens
• 75W → 9,750 lumens
• 90W → 11,700 lumens
• Select color temperature in the field: 3500K, 4000K, or 5000K
• Color rendering is 80+ CRI

Electrical and control requirements

The fixture accepts universal 120–277V input and is compatible with 0–10V control systems for dimming and integration with commercial lighting controls.

• Input voltage: 120–277V
• Dimming: 0–10V (requires compatible 0–10V dimmer or control system)
• Confirm control wiring and driver compatibility during installation

Mounting and installation configuration

The MST8FT installs as surface-mounted, suspended, or as part of a continuous-row run. Confirm run length and mounting method before specifying quantities.

• Mounting options: surface, suspended, continuous-row
• Field-selectable settings are changed on the fixture during installation

Certifications and suitable applications

The product is UL and DLC listed, making it suitable for code-driven installations and many rebate programs where those listings are required.

• Certifications: UL, DLC
• Common applications: warehouses, shops, corridors, damp and utility areas, strip-light retrofits

Before You Order

Confirm the model number and quantity required. Verify desired wattage and color-temperature setting for each fixture in the run, and confirm mounting method and control (0–10V) compatibility with the project electrical design.

• Confirm fixture length and mounting method for continuous-row installations
• Decide which selectable wattage and CCT settings you will use before or during installation
• Ensure your dimming/control system is 0–10V compatible
