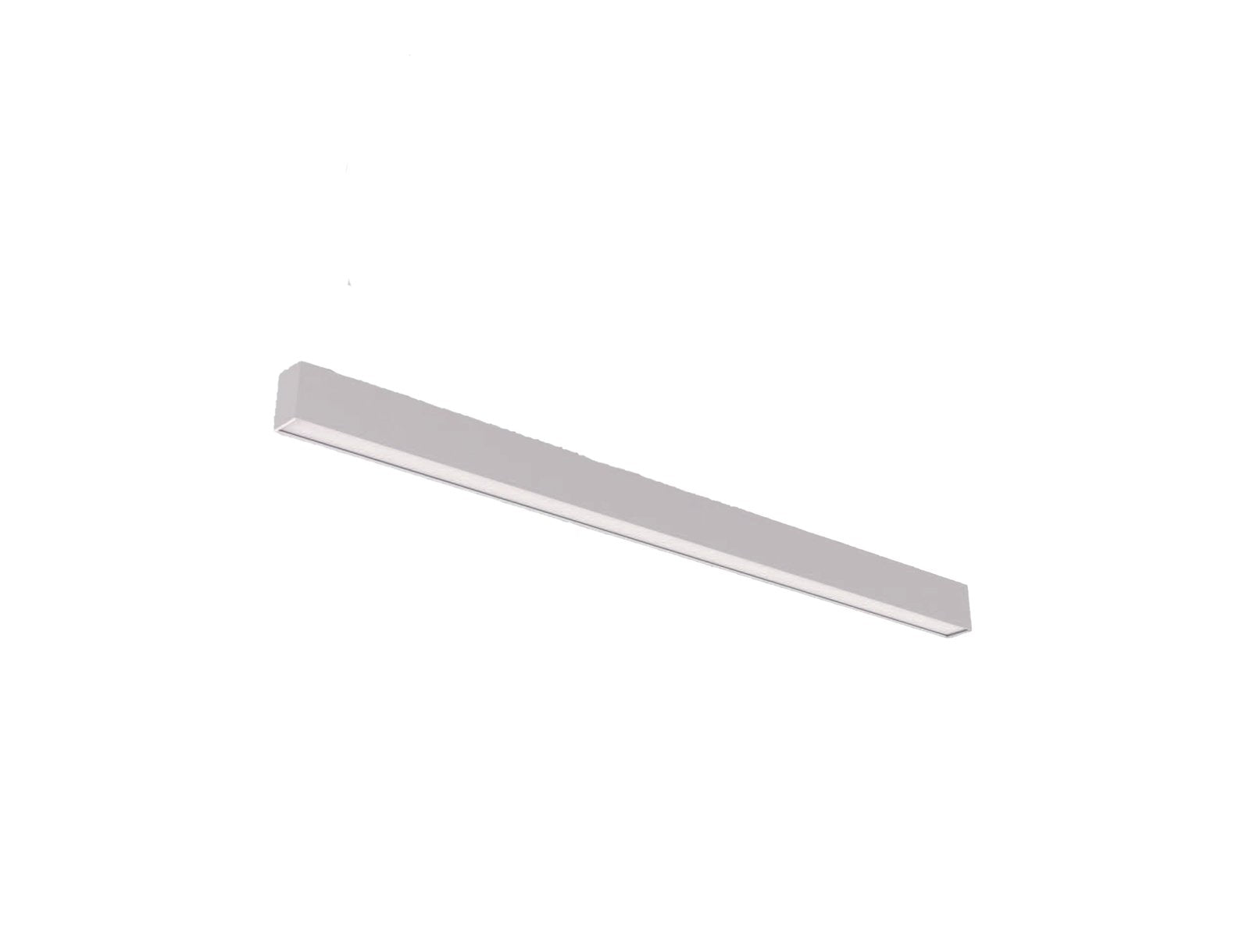

MW Lighting MLAS8FT-60/80/100W-5CCT 60/80/100W Selectable Architectural Linear Light 5-CCT Selectable

Product Overview

The MW Lighting MLAS8FT-60/80/100W-5CCT is an 8 ft LED architectural linear fixture with field-selectable wattage (60/80/100W) and five selectable color temperatures (3000K, 3500K, 4000K, 5000K, 6500K).

Designed for continuous-row and general commercial lighting, the fixture operates on universal 120–277V input, supports 0–10V dimming, and is UL listed.

Key Features

• Field-selectable wattage: 60W, 80W, or 100W in one SKU
• Five field-selectable CCTs: 3000K, 3500K, 4000K, 5000K, 6500K
• Correlated lumen outputs: 5,750 lm (60W), 7,360 lm (80W), 11,500 lm (100W)
• Universal 120–277V input and 0–10V dimming compatibility
• Mounts as surface, suspended, or continuous-row linear lighting
• 80 CRI color rendering; UL listed

What this fixture is for

The MLAS8FT-60/80/100W-5CCT is an 8 ft architectural linear LED intended for continuous-row and general-area commercial lighting. It is suitable for applications such as warehouses, shops, corridors, and utility areas where a long linear distribution and flexible spec options are needed.

• Continuous-row linear lighting for commercial and utility spaces
• Shop, warehouse, and corridor general lighting
• Damp- and utility-area fixtures and strip-light retrofits

Light output and selectable performance

This SKU provides on-site selection of three wattage levels and five color temperatures so a single fixture can meet multiple target light levels and visual preferences.

• Wattage options: 60W, 80W, 100W (field-selectable)
• Delivered lumens by setting: 5,750 lm (60W), 7,360 lm (80W), 11,500 lm (100W)
• Color temperature options (field-selectable): 3000K, 3500K, 4000K, 5000K, 6500K
• Color rendering: 80 CRI

Voltage and dimming compatibility

The fixture accepts a universal 120–277V input and supports standard 0–10V dimming controls for integration with commercial dimming and occupancy-control systems.

• Input voltage: 120–277V
• Dimming: 0–10V compatible

Mounting and installation applications

MW Lighting designed this linear fixture to mount as surface, suspended, or in continuous-row configurations. Confirm mounting method and run layout when planning installations to ensure appropriate linkage and brackets for continuous-row runs.

• Mounting: surface, suspended, or continuous-row
• Confirm fixture length (8 ft) and selected mounting hardware for runs

Technical specifications

Key technical attributes are listed below for quick reference.

• Model / SKU: MLAS8FT-60/80/100W-5CCT
• Product type: LED Architectural Linear Light
• Size: 8 ft
• Wattage: 60/80/100W (selectable)
• Lumens: 5,750 / 7,360 / 11,500 lm
• CCT: 3000K / 3500K / 4000K / 5000K / 6500K (selectable)
• CRI: 80
• Voltage: 120–277V
• Dimming: 0–10V
• Certifications: UL listed

Before You Order

Confirm the model number and quantity required before ordering. Verify the desired wattage and CCT selections for each fixture at installation, and confirm mounting method (surface, suspended, or continuous-row) for runs.

• Confirm fixture length (8 ft) and mounting hardware for continuous-row installations
• Plan for 0–10V dimming control wiring if dimming will be used
• Verify that UL listing meets the project code requirements

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for MW Lighting MLAS8FT-60/80/100W-5CCT 60/80/100W Selectable Architectural Linear Light 5-CCT Selectable. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
