MW Lighting MLAS4FT-30/40/50W-5CCT 30/40/50W Selectable Architectural Linear Light 5-CCT Selectable

Product Overview

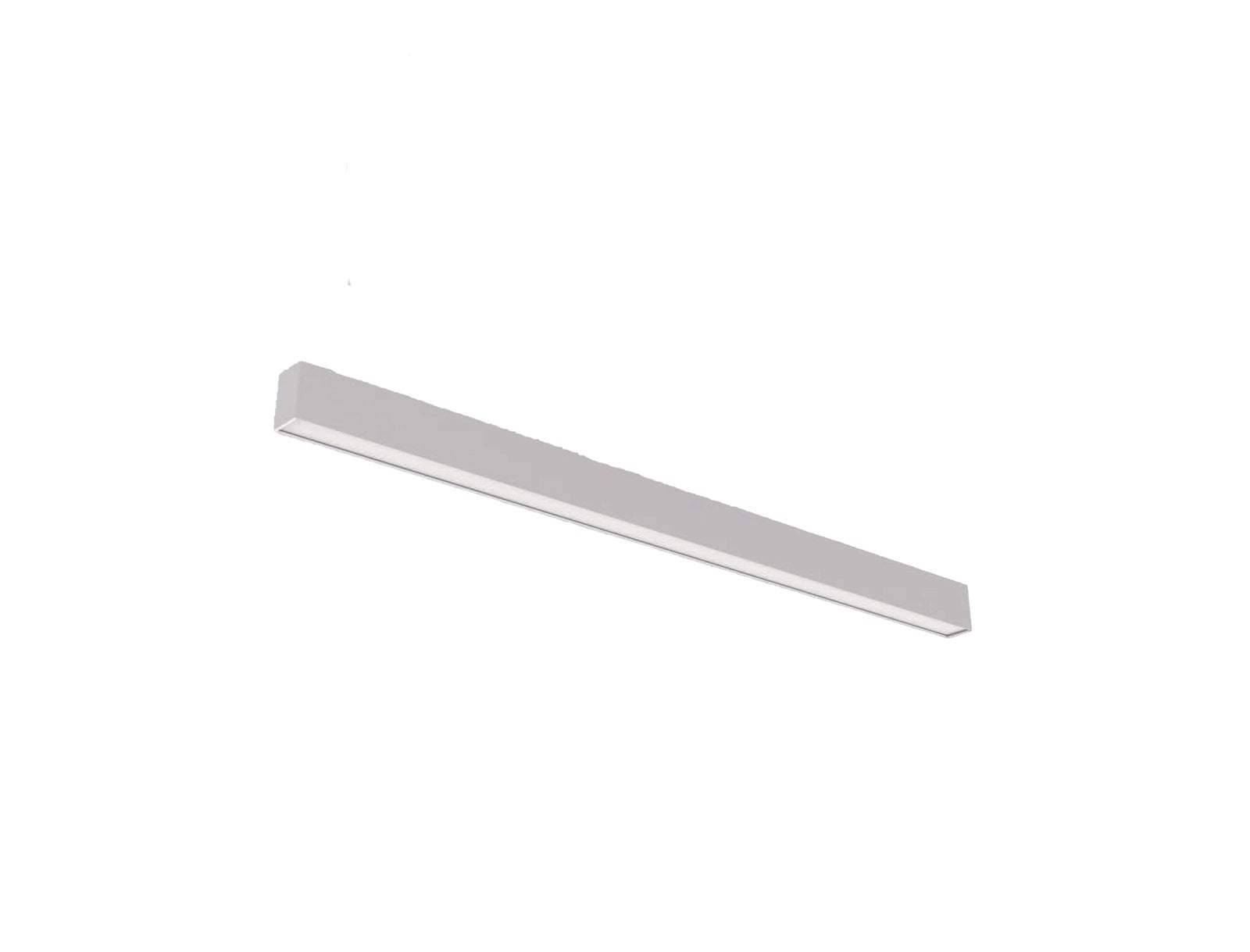

The MW Lighting MLAS4FT-30/40/50W-5CCT is a 4 ft LED architectural linear fixture with field-selectable wattage (30/40/50W) and five field-selectable color temperatures (3000K, 3500K, 4000K, 5000K, 6500K).

Lumen outputs correspond to the selected wattage: 3,450 lm, 4,600 lm, or 5,750 lm. The fixture accepts 120–277V input, supports 0–10V dimming, and is UL listed.

Key Features

• Field-selectable wattage: 30W, 40W, or 50W
• Five field-selectable CCTs: 3000K, 3500K, 4000K, 5000K, 6500K
• Lumen outputs by setting: 3,450 lm • 4,600 lm • 5,750 lm
• Universal input voltage: 120–277V
• 0–10V dimming compatible
• 80 CRI
• Mounting: surface, suspended, or continuous-row
• UL listed

What this fixture does

A 4 ft architectural linear LED designed for continuous-row or standalone installation in commercial and utility environments. Field-selectable wattage and color temperature let one SKU cover multiple on-site requirements.

Light output and color options

Select the wattage to set output and efficiency for the space. The listed lumen values correspond to the fixture's selectable wattage settings.

• Selectable wattage: 30W, 40W, 50W
• Lumen outputs: 3,450 lm (30W) • 4,600 lm (40W) • 5,750 lm (50W)
• Selectable CCTs: 3000K, 3500K, 4000K, 5000K, 6500K
• Color rendering: 80 CRI

Electrical and dimming compatibility

The fixture accepts 120–277V line voltage and is compatible with 0–10V dimming controls. Use a compatible 0–10V control device for dimming functionality.

• Input voltage: 120–277V
• Dimming: 0–10V

Mounting options and common applications

Designed for surface, suspended, or continuous-row mounting. Typical placements include linear runs, warehouses, corridors, and other commercial or utility areas.

• Mounting: surface-mounted, pendant/suspended, or continuous-row
• Common applications: continuous-row linear lighting, shop and warehouse general lighting, corridors, damp or utility areas

Certifications

The fixture is UL listed.

• UL listed

Before You Order

Confirm the quantity and mounting method for your installation and that your dimming control is 0–10V compatible.

• Verify desired wattage and CCT settings — they are field-selectable on the fixture.
• Confirm mounting method (surface, suspended, or continuous-row) and fixture length for runs.
• Ensure supply voltage is within 120–277V and that a UL-listed fixture meets your project requirements.
