MW Lighting MLAS2FT-15/20/25W-5CCT-BK 15/20/25W Selectable Architectural Linear Light 5-CCT Selectable Black

Product Overview

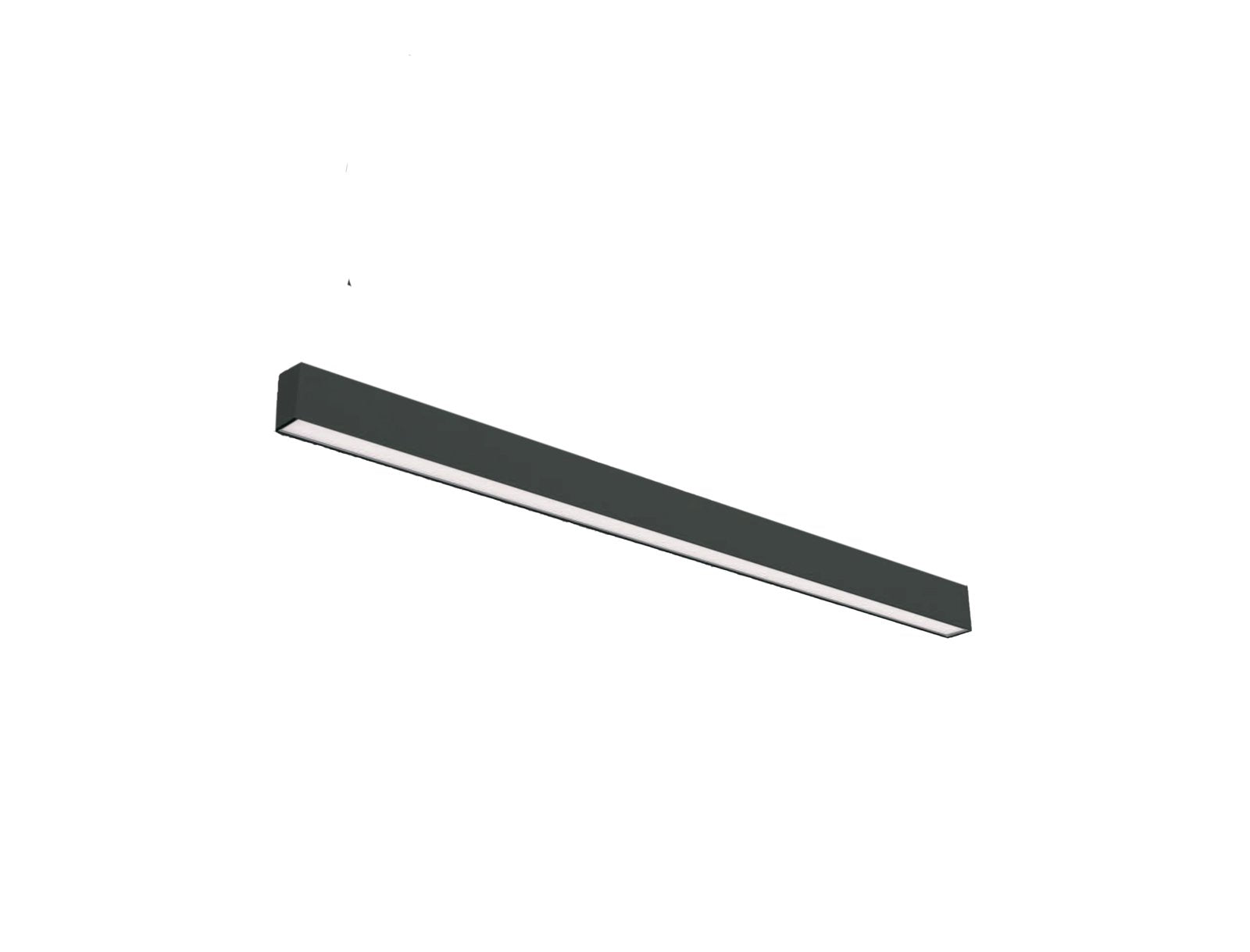

The MW Lighting MLAS2FT-15/20/25W-5CCT-BK is a 2 ft black LED architectural linear light with selectable wattage and color temperature. It operates on 120–277V and supports 0–10V dimming.

Its selectable settings provide a choice of 15W, 20W or 25W and 3000K, 3500K, 4000K, 5000K or 6500K. The listed lumen outputs are 1,725, 2,300 and 2,875 lm, respectively.

Key Features

• 2 ft architectural linear light in a black finish
• Field-selectable 15W, 20W or 25W settings
• Five selectable color temperatures from 3000K to 6500K
• Listed lumen outputs of 1,725 / 2,300 / 2,875 lm
• 120–277V input and 0–10V dimming
• UL certification

Selectable wattage and light output

This fixture offers 15W, 20W and 25W selectable settings. The listed output values are 1,725 lm, 2,300 lm and 2,875 lm, respectively.

Choose a selectable color temperature

The MLAS2FT-15/20/25W-5CCT-BK provides five color temperature choices: 3000K, 3500K, 4000K, 5000K and 6500K.

Mounting and dimming options

The fixture is listed for surface, suspended or continuous-row mounting. It supports 0–10V dimming; the catalog specifies use of a 0–10V dimmer for dimming control.

Where this linear light is used

Stated applications include continuous-row lighting for commercial and utility spaces, as well as general lighting in shops, warehouses and corridors. Strip-light retrofits are also listed.

Before You Order

Confirm the 2 ft fixture length and intended mounting method for the planned installation.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for MW Lighting MLAS2FT-15/20/25W-5CCT-BK 15/20/25W Selectable Architectural Linear Light 5-CCT Selectable Black. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
