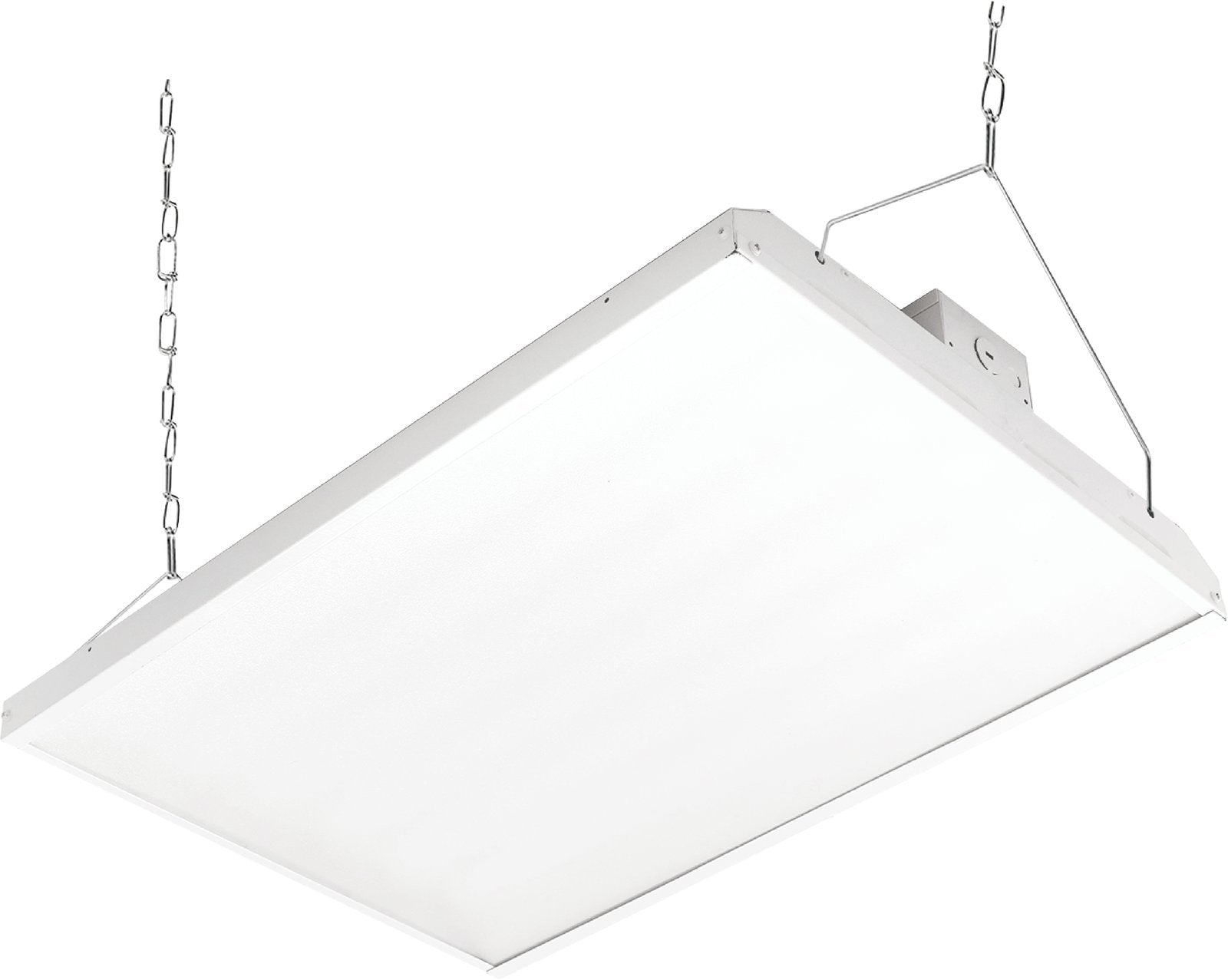

MW Lighting MHBS23-115W-50K 115W Linear High Bay

Product Overview

The MW Lighting MHBS23-115W-50K is an LED linear high bay designed for high-ceiling commercial and industrial spaces. It delivers 18,000 lumens from 115 watts with a fixed 5000K color temperature and 80+ CRI.

This model accepts universal 120–277V input and includes 0–10V dimming compatibility. It is UL and DLC listed for code-driven installations and rebate qualification.

Key Features

• 18,000 lm output at 115W (nominal)
• Fixed 5000K color temperature with 80+ CRI
• Universal 120–277V input for common facility circuits
• 0–10V dimming interface for integration with commercial controls
• Mounts by hook or pendant for open high-ceiling installations
• UL and DLC certifications

Function and Typical Applications

This fixture is intended for high-ceiling commercial and industrial lighting. It is suitable for warehouses, manufacturing floors, distribution centers, gymnasiums, big-box retail, and agricultural buildings where high lumen output and wide-area illumination are required.

• Common uses: high-ceiling general area lighting and HID-to-LED retrofits
• Designed for open spaces where hook or pendant mounting is appropriate

Performance and Light Output

The MHBS23-115W-50K produces 18,000 lumens at 115 watts with a fixed 5000K color temperature and 80+ CRI. This combination provides a bright, cool-white light suitable for task visibility and inventory areas while maintaining reasonable color rendering.

• Nominal efficacy (lm/W) is based on the listed lumen and wattage values
• Fixed 5000K ensures consistent appearance across an installation

Electrical Requirements and Controls

The fixture accepts a universal 120–277V input and supports 0–10V dimming. Pair the high bay with a compatible 0–10V controller or building lighting-control system to enable dimming functionality.

• Voltage: 120–277V
• Dimming: 0–10V — requires external 0–10V control for dimming

Mounting and Installation Notes

The MHBS23 series is designed to be mounted by hook or pendant in open high-ceiling areas. Some configuration steps should be completed before mounting.

• Set wattage and CCT selectors before mounting as required
• Confirm mounting height relative to the chosen lumen step for intended illuminance

Certifications and Rebate Eligibility

This SKU is UL listed and DLC qualified, which supports compliance with safety codes and may make the product eligible for energy-efficiency rebates where DLC-listed fixtures are required.

• Certifications: UL, DLC

Before You Order

Confirm the exact model number and the quantity required before ordering. Verify mounting method and that a compatible 0–10V control is available if dimming is required.

• Set the wattage and CCT selector before mounting as applicable
• Confirm mounting height against the chosen lumen output for desired illuminance
