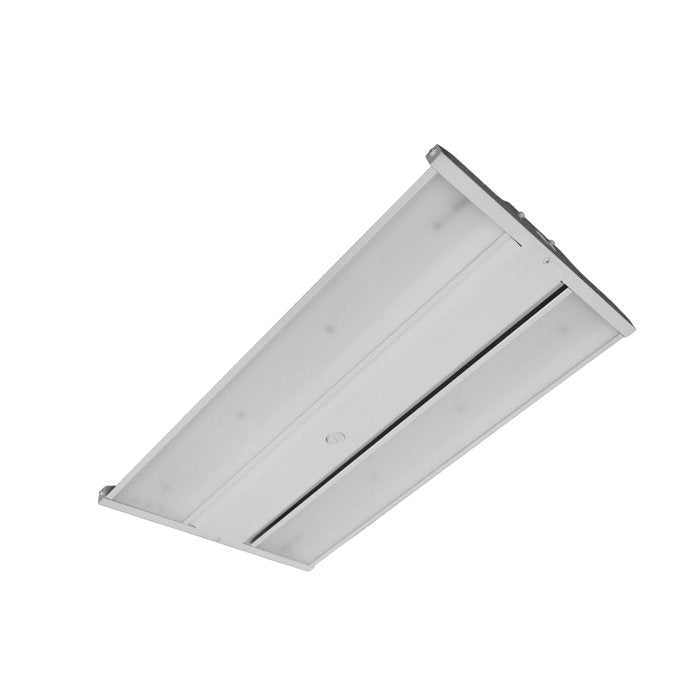

MW Lighting MHB24-170W-40K/50K 170W Linear High Bay 2-CCT Selectable

The MW Lighting MHB24-170W-40K/50K is a led linear high bay that delivers 22,950 lm at 170W for high-ceiling lighting in warehouses, manufacturing, and distribution centers. It operates on 120-277V, with field-selectable color temperature.

Key Features

• Field-selectable color temperature spans 4000K / 5000K selectable, so a single SKU replaces several stocked color options
• 80+ CRI rendering shows truer finishes, merchandise, and skin tones
• Universal 120-277V input simplifies stocking across single- and three-phase facility circuits
• 0-10V dimming integrates with commercial lighting-control and occupancy systems
• Round/linear high-bay body mounts by hook or pendant over open high-ceiling areas
• UL, DLC listed/qualified for code-driven and rebate projects

Technical Specifications

Applications

Common applications include:

• High-ceiling lighting in warehouses, manufacturing, and distribution centers
• HID high bay retrofits targeting utility rebates
• Gymnasiums, big-box retail, and agricultural buildings

Compatibility and Installation Notes

Set the wattage and CCT selector before mounting and confirm mounting height against the chosen lumen step; pair with a 0-10V control if dimming.

Lumera Electric stocks the MW Lighting MHB high bay for warehouse and industrial retrofits.
