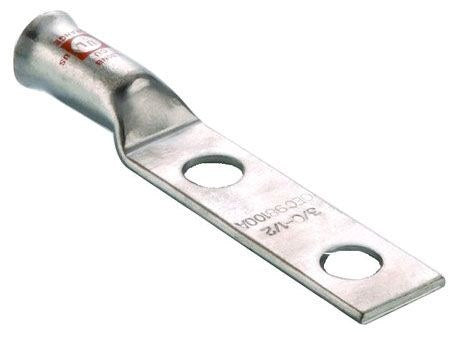

Morris 94746 Copper Flex-Cable Long-Barrel Compression Lug, #750 AWG, 1/2" Stud, 2-Hole

Product Overview

The Morris 94746 is a long-barrel compression lug for terminating #750 AWG fine-strand flexible conductors to a 1/2" stud. It is made from high-conductivity seamless copper with electro-tin plating, has a flared/belled entry for easier conductor insertion, and includes printed die and crimp markings.

The lug features a 2-hole mounting tongue, an inspection window, and is listed to UL 486AB through 35 kV.

Key Features

• Seamless high-conductivity copper body with electro-tin plating
• Long barrel with flared/belled entry for fine-strand flexible cable
• Color-coded (Black) die index and crimp marks printed on barrel
• 2-hole mounting tongue for bolted connection to a 1/2" stud
• Inspection window and barrel length to accept multiple crimps
• UL 486AB listed through 35 kV

Function and intended use

This lug terminates #750 AWG fine-strand flexible conductors and provides a bolted connection to equipment using a 1/2" stud. Common conductor types noted for the lug include welding cable, DLO, and battery cable.

Conductor and stud compatibility

Designed for #750 AWG conductors and a 1/2" stud. The flared/belled barrel entry aids insertion of fine-strand flexible cable types referenced for use with this part.

• Conductor size: #750 AWG
• Stud size: 1/2"

Crimping and installation notes

Strip the conductor to the barrel depth, insert fully through the flared entry into the barrel, and crimp using the die matching the color-coded (Black) die index printed on the barrel. After crimping, fasten the 2-hole tongue to the 1/2" stud with appropriate hardware.

• Flared/belled entry simplifies insertion of fine-strand conductors
• Printed die index and crimp marks indicate the matching die color

Materials and listing

Manufactured from high-conductivity seamless copper with electro-tin plating for corrosion resistance. The lug is listed to UL 486AB through 35 kV.

• Material: Seamless copper, electro-tin plated
• Listing: UL 486AB through 35 kV

Physical configuration

The 94746 is a long-barrel style compression lug with a two-hole tongue and an inspection window. The barrel includes printed crimp marks and a Black die color code.

• Barrel: Long barrel with inspection window and flared entry
• Mounting: 2-hole tongue for 1/2" stud
• Die color code: Black (printed on barrel)

Before You Order

Confirm conductor size (#750 AWG) and that the receiving hardware accepts a 1/2" stud with a 2-hole lug.

• Verify the Black die code on the barrel and use the matching compression die for crimping.
