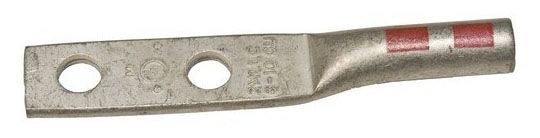

Morris 94399 Copper Long-Barrel Compression Lug, 1000 MCM, 1/2" Stud, 2-Hole
SKU: 94399
Price:
$130.37
Free shipping on orders over $1,500
Description
Morris's 94399 is a copper long-barrel compression lug that terminates a 1000 MCM conductor on a 1/2" stud with 2-hole mounting. It is made of high-conductivity seamless copper with electro-tin plating, has a color-coded (White) die index printed on the barrel, and is UL 486AB Listed through 35kV.
Key Features
- High-Conductivity Seamless Copper
- Electro-Tin Plating Resists Corrosion
- Color-Coded Die Index and Crimp Marks Printed on Barrel
- UL 486AB Listed for Applications Through 35kV
- Dual Mounting Holes for Superior Contact Integrity
- Long Barrel Accommodates Multiple Crimps
- Inspection Window
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 94399 |
| Type | Copper Long-Barrel Compression Lug |
| Conductor Size | 1000 MCM |
| Stud Size | 1/2" |
| Mounting | 2-Hole |
| Barrel | Long Barrel |
| Die Color Code | White |
| Material | Seamless Copper, Tin-Plated |
| Rating | UL 486AB Through 35kV |
Applications
Used to terminate 1000 MCM copper conductors to bus, panels, and equipment with a 1/2" bolt.
Installation
Strip the conductor to barrel depth, insert fully, and crimp with the White-coded die; bolt the tongue to the 1/2" stud.
