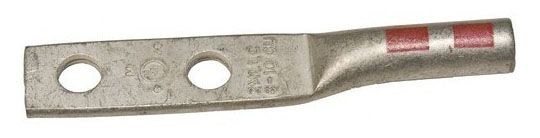

Morris 94386 Copper Long-Barrel Compression Lug, 400 MCM, 1/2" Stud, 2-Hole

Product Overview

The Morris 94386 is a copper long-barrel compression lug for terminating a 400 MCM conductor at a 1/2-inch stud. Its two-hole mounting tongue is designed for attachment to a matching bolted connection.

The lug is made from seamless, high-conductivity copper with electro-tin plating. A blue die index and crimp marks are printed on the barrel, which also includes an inspection window.

Key Features

• For 400 MCM conductor and 1/2-inch stud connections
• Two-hole mounting tongue
• Seamless copper construction with electro-tin plating
• Long barrel with printed blue die index and crimp marks
• Inspection window
• UL 486AB Listed for applications through 35 kV

What the Morris 94386 Lug Connects

The Morris 94386 terminates a 400 MCM conductor to a 1/2-inch stud connection. It is described for connecting copper conductors to bus, panels, and equipment with a matching 1/2-inch bolt.

The catalog lists the lug as UL 486AB Listed for applications through 35 kV.

Barrel Design and Die Identification

The long barrel is made from seamless, high-conductivity copper and has electro-tin plating. Its printed blue die index and crimp marks provide identification on the barrel; an inspection window is also included.

The catalog describes the long barrel as accommodating multiple crimps. Follow the applicable tooling instructions for the conductor and lug when making the termination.

Two-Hole Mounting

The lug has a two-hole mounting tongue for bolted attachment and is specified for a 1/2-inch stud. Confirm the connection hardware and mounting arrangement match the equipment before installation.

Before You Order

Confirm the conductor size, 1/2-inch stud, and two-hole mounting configuration match the intended connection.

• Confirm the model number and quantity required before ordering.
