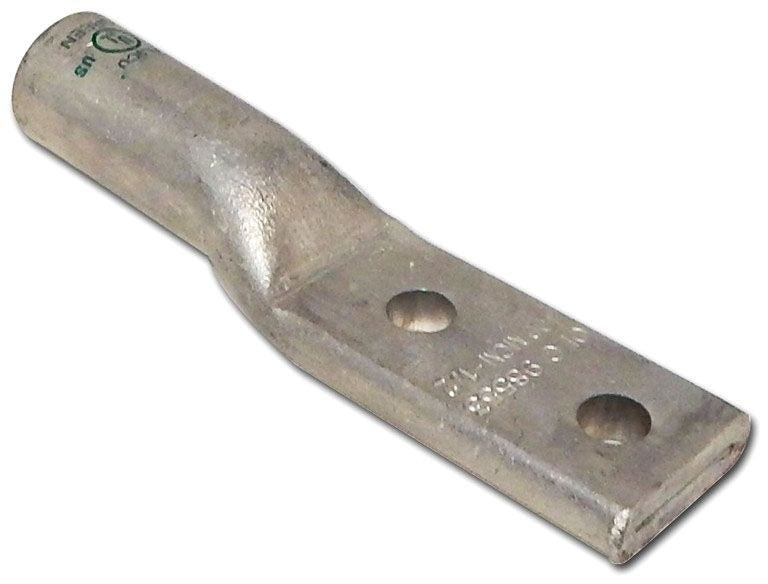

Morris 93125 Aluminum Long-Barrel Compression Lug, 500 MCM, 3/8" Stud, 2-Hole

Product Overview

The Morris 93125 is a long-barrel compression lug for terminating 500 MCM conductors to a 3/8" stud using a two-hole mounting tongue.

Made from high-conductivity seamless aluminum with electro-tin plating, the lug is pre-filled with oxide inhibitor and is AL9CU dual-rated for aluminum and copper conductors; it is UL 486AB listed for applications through 35 kV.

Key Features

• Sized for 500 MCM conductor with 3/8" stud, 2-hole mounting
• High-conductivity seamless aluminum barrel with electro-tin plating
• AL9CU dual-rated for aluminum and copper conductors
• Pre-filled with oxide inhibitor
• Long barrel accommodates multiple crimps; pink die color code printed on barrel
• UL 486AB listed for applications through 35 kV

What this lug does

The Morris 93125 is a compression lug used to terminate a 500 MCM conductor to equipment, bus or panel hardware with a 3/8" stud. The two-hole tongue provides a bolted connection.

• For direct crimp termination of 500 MCM conductors
• Two-hole, 3/8" stud tongue for bolted connection

Materials and corrosion protection

The lug is formed from seamless, high-conductivity aluminum and has electro-tin plating. The barrel is pre-filled with an oxide inhibitor.

• Seamless aluminum construction
• Electro-tin plating
• Pre-filled oxide inhibitor in barrel

Electrical ratings and approvals

The lug is AL9CU dual-rated for use with aluminum and copper conductors and is listed to UL 486AB for applications through 35 kV.

• AL9CU dual-rated
• UL 486AB listed through 35 kV

Installation and crimping guidance

Strip the conductor to the barrel depth, insert fully, and crimp with the correct die. The barrel is marked with a pink die index and printed crimp marks to identify the matching die size.

• Strip conductor to barrel depth and insert fully
• Crimp using the pink-coded die indicated on the barrel
• Bolt the tongue to the 3/8" stud using the two holes

Size, mounting and barrel configuration

The 93125 is a long-barrel compression lug sized for a 500 MCM conductor. Mounting is via a two-hole tongue drilled for a 3/8" stud. The extended barrel length accommodates multiple crimps.

• Conductor size: 500 MCM
• Stud size: 3/8"
• Mounting: 2-hole tongue
• Barrel: long-barrel design

Before You Order

Verify the conductor size and stud size for your installation before ordering.

• Confirm 500 MCM conductor and 3/8" stud with two-hole mounting match your application.
• Use the pink-coded die and an appropriate crimping tool per your crimp tool manufacturer's guidance.
