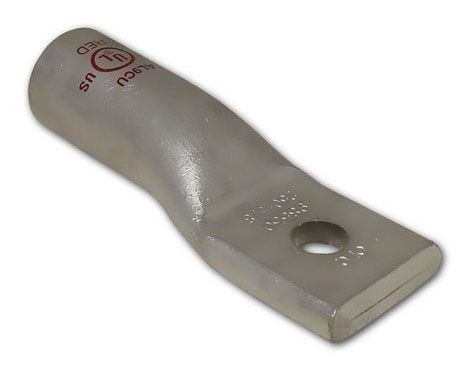

Morris 93085 Aluminum Long-Barrel Compression Lug, 600 MCM, 1/2" Stud, 1-Hole

Product Overview

The Morris 93085 is a one-hole, aluminum long-barrel compression lug for terminating a 600 MCM conductor on a 1/2-inch stud.

It is AL9CU dual-rated for aluminum and copper conductors. The seamless aluminum lug has electro-tin plating, comes pre-filled with oxide inhibitor, and has a black-coded die index printed on the barrel.

Key Features

• Fits 600 MCM aluminum or copper conductors and a 1/2-inch stud
• Long barrel accommodates multiple crimps; die index and crimp marks are printed on the barrel
• Pre-filled with oxide inhibitor
• UL 486AB Listed for applications through 35 kV

Conductor and Stud Compatibility

The Morris 93085 is sized for a 600 MCM conductor and has a one-hole tongue for a 1/2-inch stud. Its AL9CU dual rating covers both aluminum and copper conductors.

Aluminum Construction and Barrel Markings

The lug is made from seamless aluminum with electro-tin plating and is pre-filled with oxide inhibitor. Its long barrel accommodates multiple crimps.

• A black-coded die index and crimp marks are printed on the barrel.

Termination and Installation

This lug is intended to terminate a 600 MCM aluminum or copper conductor to a bus, panel, or equipment connection using a 1/2-inch bolt.

• Strip the conductor to the barrel depth and insert it fully.
• Crimp with the black-coded die, then bolt the lug tongue to the 1/2-inch stud.

Listing and Rating

The Morris 93085 is UL 486AB Listed for applications through 35 kV and is AL9CU dual-rated for aluminum and copper conductors.

Before You Order

Confirm that the conductor is 600 MCM and that the connection uses a 1/2-inch stud.
