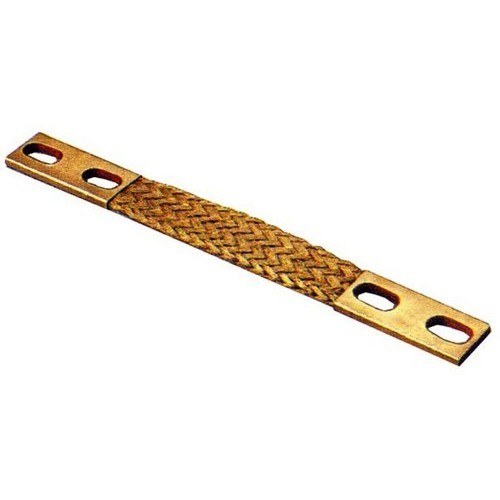

Morris 91620 Flexible Braided Jumper Strap, 12", 400A

Product Overview

The Morris 91620 is a 12" flexible braided jumper strap designed to maintain ground-electrode continuity while bridging expansion gaps and absorbing vibration or misalignment between moving parts.

Constructed from extra-flexible tinned copper braid with tin-plated pure electrolytic copper mounting pads, the 91620 is rated 330A for indoor use and 400A for outdoor use.

Key Features

• Extra-flexible tinned copper braid flattened into a rectangular profile for improved flexibility
• Tin-plated pure electrolytic copper mounting pads with 1/4" pad holes for bolted connections
• Rated 330A indoors and 400A outdoors
• Cross section: 154,500 circular mils — sized for high-conductivity bonding and grounding

What this jumper strap does

The Morris 91620 provides a flexible, low-resistance electrical connection to preserve continuity of grounding or bonding systems where rigid conductors would be damaged by movement, thermal expansion, vibration, or settling.

• Bridges expansion joints and movement gaps
• Absorbs vibration and compensates for misalignment between bonded parts
• Maintains a durable conductive path for grounding and bonding

Typical applications

Use the 91620 where a flexible bond is required between equipment, structures, or foundations that may move relative to one another. It is intended for bonding across expansion joints, equipment interfaces, and substation foundations where a solid conductor could fatigue or break.

• Bonding across expansion joints
• Equipment grounding where movement or vibration is present
• Substation and grounding installations requiring flexible continuity

Mounting and connection details

Each end of the 91620 has a tin-plated mounting pad. Attach the strap by bolting the pads to the surfaces being bonded using the specified pad hole size.

• Pad hole size: 1/4" — use appropriately sized bolts and hardware
• Bolt each tin-plated end pad to the mating surface to ensure mechanical and electrical continuity

Key specifications

Reference these verified measurements and ratings when selecting the 91620 for your installation.

• Length: 12"
• Amp rating: 330A (indoor) / 400A (outdoor)
• Cross section: 154,500 circular mils
• Pad size: 1-1/2" x 9/16"
• Pad hole size: 1/4"
• Material: tinned copper braid with tin-plated pure electrolytic copper pads

Before You Order

Confirm the model number and quantity required before ordering. Verify that the 12" length, pad-hole size, and amp rating match the requirements of your bonding or grounding application.

• Confirm compatibility of 1/4" pad holes with your bolting hardware and mating surfaces
• Verify the 330A indoor / 400A outdoor amp rating meets your installation's electrical requirements
