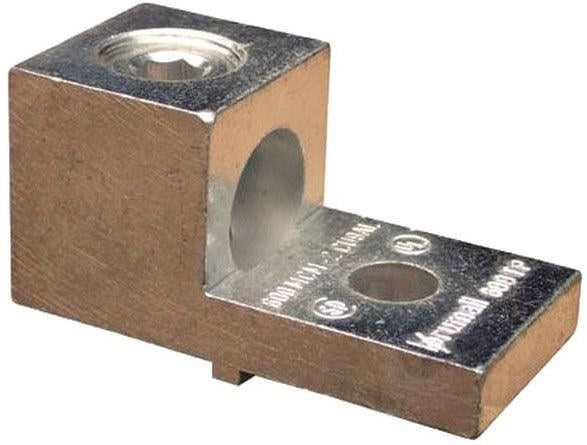

Morris 91316B Aluminum Turn-Prevent Lug, 350 MCM - 6 AWG

Morris's 91316B is a dual-rated aluminum mechanical turn-prevent lug for terminating 350 MCM - 6 AWG copper or aluminum conductors. It is made from 6061-T6 aluminum alloy, tin-plated for low contact resistance, with a set screw and a turn-prevent on the bottom of the tang for one-conductor, one-hole mounting; it is rated 600V.

Key Features

• Set-Screw Connector with a Turn-Prevent on the Bottom of the Tang
• Made of 6061-T6 Aluminum Alloy
• Tin-Plated for Low Contact Resistance and Corrosion Protection
• Suitable for Use with Both Copper and Aluminum
• Rated 600V

Specifications

Applications

Used to terminate 350 MCM - 6 AWG copper or aluminum conductors to a one-hole pad where a turn-prevent tang keeps the lug from rotating under torque.

Installation

Insert the conductor into the barrel, seat the turn-prevent tang against the mounting surface, and tighten the set screw to the rated torque for the wire size.
