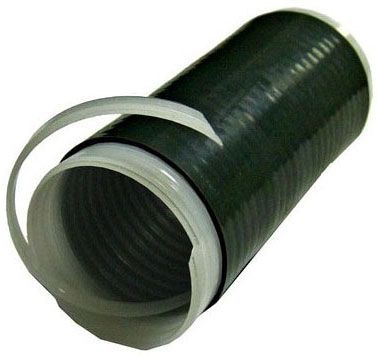

Morris 68306 Cold Shrink Tube, 500 MCM - 800 MCM, 9"

Product Overview

The Morris 68306 is a 9-inch silicone rubber cold shrink tube for cable-jacket repair and splicing on 500 MCM–800 MCM conductors. Its stated cable diameter range is 0.97–1.95 inches.

The tube is applied without heat: position it over the cable, then unwind and pull the removable rip-cord core so the silicone contracts onto the cable. It is submersible-rated and rated 1000V for primary insulation.

Key Features

• Fits a stated conductor range of 500 MCM–800 MCM and cable diameter range of 0.97–1.95 inches
• 9-inch-long silicone rubber tube
• Installs without heat using a removable rip-cord core
• Submersible-rated for cable-jacket repair and splicing
• Rated 1000V for primary insulation; conforms to ANSI C119.1 1986
• UV resistant

Cable-Jacket Repair and Splicing

Morris 68306 is intended for cold-applied cable-jacket repair and splicing on 500 MCM–800 MCM conductors. Its stated applications include submersible and direct-buried locations.

Conductor and Cable Diameter Range

This tube is specified for conductors from 500 MCM through 800 MCM and cable diameters from 0.97 to 1.95 inches. Check the cable diameter as well as the conductor size when selecting the tube.

Installation Without Heat

Installation uses the removable rip-cord core rather than a heat source. Position the tube over the cable, then unwind and pull the core to allow the silicone tube to collapse onto the cable.

Voltage and Ratings

The 68306 is rated 1000V for primary insulation, is submersible-rated, conforms to ANSI C119.1 1986, and is UV resistant.

Before You Order

Confirm that the cable conductor size and measured cable diameter fall within the specified ranges.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 68306 Cold Shrink Tube, 500 MCM - 800 MCM, 9". For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
