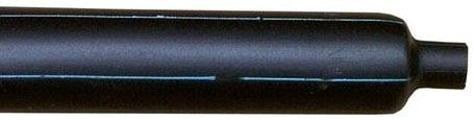

Morris 68238 Heat Shrink End Cap, 900 - 2500 MCM, 2.05" → 0.75"
Morris 68238 Heat Shrink End Cap, 900 - 2500 MCM, 2.05" → 0.75"
Regular price
$19.66
Regular price
Sale price
$19.66
SKU:68238
Quantity
Couldn't load pickup availability
Morris's 68238 is a black adhesive-lined heat shrink end cap for sealing 900 - 2500 MCM cable ends, pipe, and conduit. It recovers from 2.05" to 0.75", has an adhesive liner for complete environmental protection, heat-indicating lines, and is rated to 1KV at 90°C continuous use (UL486D, shrink temperature 248°F/120°C).
Key Features
- Simple, Effective Sealing of Cable Ends, Pipe, and Conduit
- Adhesive Liner for Complete Environmental Protection and Insulation
- Superior Resistance to Weathering, Moisture, and Common Fluids/Solvents
- Heat-Indicating Lines
- Continuous Operating Temperature -67°F to 230°F (-55°C to 110°C)
- Rated to 1KV, 90°C Continuous Use
- UL486D - Shrink Temperature 248°F (120°C)
- Black Color
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 68238 |
| Type | Heat Shrink End Cap |
| Cable Range | 900 - 2500 MCM |
| Length | 4.50" |
| Expanded Diameter | 2.05" |
| Recovered Diameter | 0.75" |
| Wall Thickness | 0.08" |
| Adhesive Liner | Yes |
| Voltage | 1KV |
| Listing | UL486D |
Applications
Used to seal and moisture-proof the cut ends of 900 - 2500 MCM cables, as well as pipe and conduit ends.
Installation
Slide the cap over the cable end and apply heat evenly until it recovers and the adhesive seals the opening; heat-indicating lines confirm full recovery.
