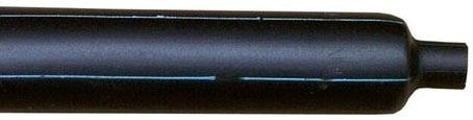

Morris 68236 Heat Shrink End Cap, 500 - 1500 MCM, 1.50" → 0.50"

Product Overview

The Morris 68236 is a black, adhesive-lined heat shrink end cap sized for 500–1500 MCM cable ends, pipe, and conduit. It recovers from a 1.50" expanded diameter to a 0.50" recovered diameter and provides a sealed, weather-resistant termination when recovered.

The 4.50" long cap is listed to UL486D, has heat-indicating lines, and is rated to 1 kV for 90°C continuous use (shrink temperature 248°F / 120°C).

Key Features

• Fits 500–1500 MCM cable range
• Expanded diameter 1.50"; recovered diameter 0.50"; length 4.50"
• Adhesive inner liner for environmental sealing
• Heat-indicating lines to verify recovery
• Continuous operating temperature −67°F to 230°F (−55°C to 110°C)
• Rated 1 kV, 90°C continuous use
• UL486D listed (shrink temperature 248°F / 120°C)
• Black color; 0.08" wall thickness

What this product does

The Morris 68236 heat shrink end cap provides a sealed termination for the cut ends of 500–1500 MCM cables and can be used to close pipe or conduit ends. The adhesive-lined construction is intended to form a moisture- and contaminant-resistant barrier after proper recovery.

• Seals cable ends to reduce moisture ingress
• Provides electrical insulation up to the product's stated voltage rating
• Resists weathering and many common fluids and solvents per product description

Typical applications

Intended for sealing and moisture-proofing exposed ends of large cables in the 500–1500 MCM range, and for use on pipe or conduit ends where a heat-shrink closure is appropriate.

• Large power and service cable end sealing (500–1500 MCM)
• Pipe and conduit end sealing
• Field or factory terminations requiring an adhesive-lined end cap

Ratings and environmental limits

Use the following ratings when evaluating suitability for an application. These values are taken from the product data.

• Voltage rating: 1 kV
• Continuous operating temperature: −67°F to 230°F (−55°C to 110°C)
• Listing: UL486D (shrink temperature 248°F / 120°C)

Installation and recovery guidance

Slide the cap over the cable, pipe, or conduit end and apply heat evenly until the sleeve recovers and the adhesive seals the opening. Heat-indicating lines on the sleeve confirm full recovery.

• Apply heat uniformly until heat-indicating lines show full recovery
• Allow adhesive liner to flow and form the seal during heating
• Use appropriate heating tools and follow safe heating practices

Key specifications

Reference these dimensions and listing information when selecting the Morris 68236 for a project.

• Brand: Morris
• Catalog no.: 68236
• Type: Heat shrink end cap
• Cable range: 500–1500 MCM
• Length: 4.50"
• Expanded diameter: 1.50"
• Recovered diameter: 0.50"
• Wall thickness: 0.08"
• Adhesive liner: Yes
• Voltage rating: 1 kV
• Listing: UL486D (shrink temperature 248°F / 120°C)
• Operating temperature: −67°F to 230°F (−55°C to 110°C)
• Color: Black

Before You Order

Confirm the model number and that the 500–1500 MCM cable range and 0.50" recovered diameter fit your application.

• Verify cable outer diameter and recovered diameter compatibility
• Have appropriate heat tools and follow safe heating practices during installation
