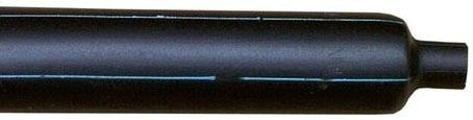

Morris 68234 Heat Shrink End Cap, 300 - 1000 MCM, 1.30" → 0.40"
Morris 68234 Heat Shrink End Cap, 300 - 1000 MCM, 1.30" → 0.40"
Regular price
$11.50
Regular price
Sale price
$11.50
SKU:68234
Quantity
Couldn't load pickup availability
Morris's 68234 is a black adhesive-lined heat shrink end cap for sealing 300 - 1000 MCM cable ends, pipe, and conduit. It recovers from 1.30" to 0.40", has an adhesive liner for complete environmental protection, heat-indicating lines, and is rated to 1KV at 90°C continuous use (UL486D, shrink temperature 248°F/120°C).
Key Features
- Simple, Effective Sealing of Cable Ends, Pipe, and Conduit
- Adhesive Liner for Complete Environmental Protection and Insulation
- Superior Resistance to Weathering, Moisture, and Common Fluids/Solvents
- Heat-Indicating Lines
- Continuous Operating Temperature -67°F to 230°F (-55°C to 110°C)
- Rated to 1KV, 90°C Continuous Use
- UL486D - Shrink Temperature 248°F (120°C)
- Black Color
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 68234 |
| Type | Heat Shrink End Cap |
| Cable Range | 300 - 1000 MCM |
| Length | 4.00" |
| Expanded Diameter | 1.30" |
| Recovered Diameter | 0.40" |
| Wall Thickness | 0.08" |
| Adhesive Liner | Yes |
| Voltage | 1KV |
| Listing | UL486D |
Applications
Used to seal and moisture-proof the cut ends of 300 - 1000 MCM cables, as well as pipe and conduit ends.
Installation
Slide the cap over the cable end and apply heat evenly until it recovers and the adhesive seals the opening; heat-indicating lines confirm full recovery.
