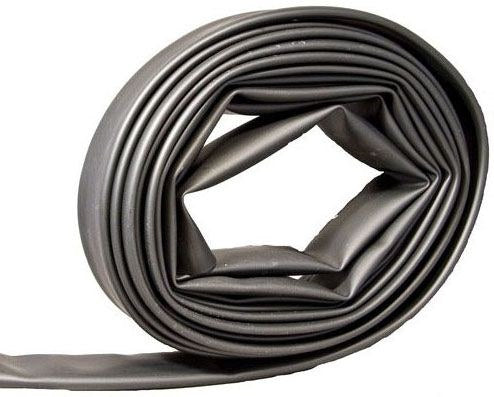

Morris 68196 Heavy-Wall Heat Shrink Tubing, 3.54" → 1.18", 25 ft Roll

Product Overview

Morris 68196 is a black heavy-wall heat shrink tubing supplied on a 25 ft roll with a 3:1 shrink ratio (3.54" expanded → 1.18" recovered) sized for 800 MCM to 1250 MCM cable.

The tubing is rated 600–1000V at 90°C continuous use, has corrosion and chemical resistance, and is intended to insulate and protect cable joints, splices, and terminations, including direct-burial and underground applications.

Key Features

• 3:1 shrink ratio: 3.54" expanded to 1.18" recovered
• 25 ft continuous roll; heavy-wall construction (0.16" wall thickness)
• Sized for 800 MCM–1250 MCM cable
• Rated 600–1000V, 90°C continuous use; operating range −67°F to 230°F (−55°C to 110°C)
• Corrosion and chemical resistant
• No adhesive liner (non‑lined)
• Shrink temperature: 248°F (120°C)
• Black color

Function and Intended Use

Morris 68196 heavy-wall heat shrink tubing is intended to insulate and protect large cable joints, splices, and terminations. Its heavy-wall construction provides increased mechanical protection compared with medium-wall tubing.

• Primary use: insulating and protecting 800 MCM–1250 MCM cable joints and terminations
• Provides corrosion and chemical resistance

Electrical and Thermal Performance

This tubing is rated for 600–1000 volts with a continuous temperature rating of 90°C. The specified operating temperature range is −67°F to 230°F (−55°C to 110°C), and the shrink temperature is listed as 248°F (120°C).

• Voltage rating: 600–1000V
• Continuous use temperature: 90°C
• Operating temperature range: −67°F to 230°F (−55°C to 110°C)
• Shrink temperature: 248°F (120°C)

Size, Wall Thickness, and Roll Length

Confirm physical dimensions to ensure the tubing fits your cable and joint configuration. The product is supplied as a 25 ft roll with heavy-wall thickness.

• Expanded diameter: 3.54"
• Recovered diameter: 1.18"
• Wall thickness: 0.16"
• Length: 25 ft (continuous roll)

Installation Overview

Slide the tubing over the joint or splice and apply heat evenly from the center outward until the tubing has fully recovered. Because this SKU has no adhesive liner, additional sealing methods should be used if an adhesive or moisture seal is required for your application.

• Non‑lined (no adhesive liner)
• Apply heat evenly from center outward until fully recovered
• Verify full recovery and even wall conformity over the splice

Applications and Environments

The Morris 68196 is intended for heavy-duty cable protection in terrestrial installations, including direct-buried and underground applications, per the product description.

• Listed for direct-burial and underground cable joints and terminations
• Sized for large conductors in the 800 MCM–1250 MCM range

Before You Order

Confirm the model number and cable size required before ordering; this SKU is a non‑lined heavy-wall tubing sized for 800–1250 MCM cable and supplied as a 25 ft roll.

• Verify conductor size (800 MCM–1250 MCM) and required recovered diameter (1.18")
• If an adhesive liner or integrated sealing is required, choose a lined product or additional sealing method — this SKU is non‑lined
• Confirm quantity required for your project

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 68196 Heavy-Wall Heat Shrink Tubing, 3.54" → 1.18", 25 ft Roll. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
