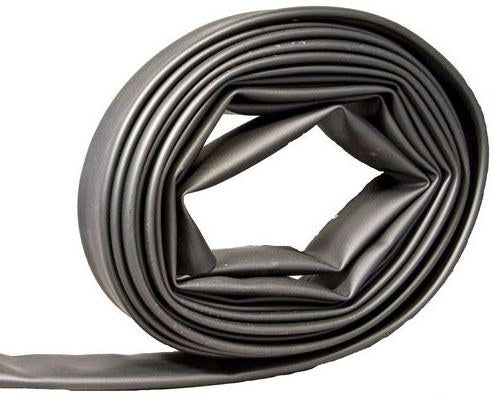

Morris 68194 Heavy-Wall Heat Shrink Tubing, 2.70" → 0.87", 25 ft Roll

Morris's 68194 is black heavy-wall heat shrink tubing in a 25 ft roll length for 600 MCM - 1000 MCM cable, supplied at 2.70" and recovering to 0.87" at a 3:1 shrink ratio. It is rated 600-1000V at 90°C continuous use, is corrosion and chemical resistant, and holds better mechanically with better underground protection than medium wall.

Key Features

• 3:1 Shrink Ratio
• Maximum Reliability for Insulating and Protecting Cable Joints and Terminations
• Corrosion and Chemical Resistance
• Rated for 600-1000V, 90°C Continuous Use
• Holds Better Mechanically and Underground than Medium Wall
• Continuous Operating Temperature -67°F to 230°F (-55°C to 110°C)
• Shrink Temperature 248°F (120°C)
• Black Color

Specifications

Applications

Used to insulate and protect 600 MCM - 1000 MCM cable joints, splices, and terminations, including direct-buried and underground applications.

Installation

Slide the tubing over the joint and apply heat evenly from the center outward until fully recovered.
