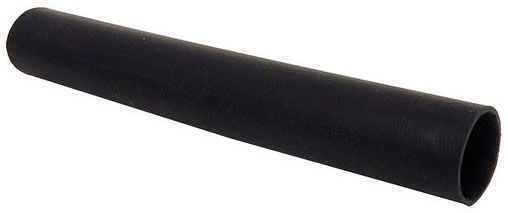

Morris 68012 Flame-Retardant Heavy-Wall Heat Shrink Tubing, 1.10" → 0.35", 12"
Morris 68012 Flame-Retardant Heavy-Wall Heat Shrink Tubing, 1.10" → 0.35", 12"
Regular price
$11.61
Regular price
Sale price
$11.61
SKU:68012
Quantity
Couldn't load pickup availability
Morris's 68012 is black flame-retardant heavy-wall heat shrink tubing in a 12" length for #1 AWG - 3/0 AWG cable, supplied at 1.10" and recovering to 0.35" at a 3:1 shrink ratio. Its adhesive sealant liner provides complete environmental protection and insulation, it will not split or rupture during installation, and it is rated 1KV at 90°C continuous use where maximum flame retardancy is required.
Key Features
- 3:1 Shrink Ratio Accommodates Various Shapes and Contours
- Insulates and Protects Splices and Terminations Where Maximum Flame Retardancy Is Required
- Adhesive Sealant Liner for Complete Environmental Protection and Insulation
- Will Not Split or Rupture During Installation
- Flame Retardant
- Rated for 1KV, 90°C Continuous Use
- Continuous Operating Temperature -67°F to 230°F (-55°C to 110°C)
- Shrink Temperature 248°F (120°C)
- Black Color
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 68012 |
| Type | Flame-Retardant Heavy Wall Heat Shrink Tubing |
| Cable Range | #1 AWG - 3/0 AWG |
| Expanded Diameter | 1.10" |
| Recovered Diameter | 0.35" |
| Wall Thickness | 0.12" |
| Shrink Ratio | 3:1 |
| Length | 12" |
| Adhesive Liner | Yes (Sealant) |
| Flame Retardant | Yes |
| Voltage | 1KV |
| Temperature | 90°C |
| Color | Black |
Applications
Used to insulate and protect #1 AWG - 3/0 AWG cable splices and terminations where flame retardancy and environmental sealing are required.
Installation
Slide the tubing over the joint and apply heat evenly from the center outward until fully recovered and adhesive flows from the ends.
