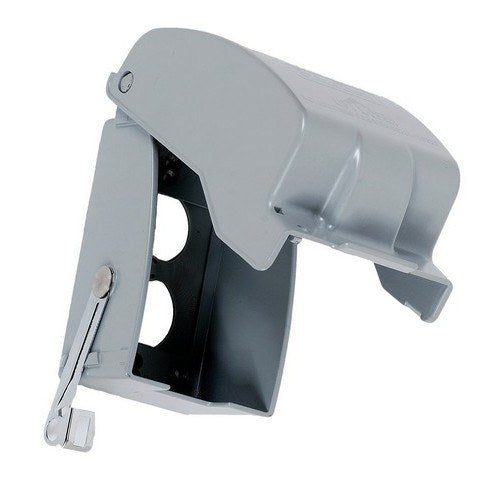

Morris 38915 Metal While-In-Use Weatherproof Cover, 1-Gang Vertical, Gray

Product Overview

The Morris 38915 is a die-cast aluminum while-in-use weatherproof cover designed for 1-gang vertical outdoor receptacles. It provides a protective enclosure that allows a cord to remain connected while shielding the connection from rain and debris.

This cover meets NEC 406.9(B)(1) Extra Duty requirements and carries a NEMA 3R rating with cULus 514D, NEMA FB-1 and Federal Spec A-A-50563 listings. It includes a pre-installed gasket and ground lug and adjusts to accommodate recessed devices.

Key Features

• Complies with NEC 406.9(B)(1) Extra Duty for while-in-use protection
• NEMA 3R rated; listed to cULus 514D, NEMA FB-1 and Fed. Spec A-A-50563
• Die-cast aluminum construction with gray finish
• Patented adjustable cover depth from 2-3/4" to 3-1/2" to keep cords connected
• Pre-installed gasket and included ground lug
• Lockable latching tab and heavy-duty reinforced hidden hinge (40 lb force rating)
• Built-in water dam channels and extra-large cable exit to reduce moisture ingress
• Can be mounted vertically or horizontally

What this cover does

The Morris 38915 provides a weatherproof enclosure that lets a cord remain connected to an outdoor 1-gang vertical receptacle while protecting the plug and outlet from rain, dirt and debris.

• Allows in-use connection without exposing the receptacle interior
• Extra-large cable exit accommodates typical appliance and tool cords
• Lockable latching tab prevents accidental disconnects

Ratings and listings

This model is rated NEMA 3R and meets NEC 406.9(B)(1) Extra Duty requirements for while-in-use covers. It is listed to cULus 514D, NEMA FB-1 and Federal Specification A-A-50563.

• NEC 406.9(B)(1) — Extra Duty while-in-use cover
• NEMA 3R — suitable for outdoor exposure to rain

Depth adjustment and cord clearance

The patented cover adjusts to accommodate devices set back from the mounting surface and to keep cords connected while the lid is closed.

• Adjustable cover depth: 2-3/4" to 3-1/2"
• Pre-installed gasket seals around the device and cord entry

Mounting and grounding

Mount the cover to a 1-gang box, route the cord through the cable exit, close the lid over the plug and bond to the provided ground lug.

• Includes ground lug for bonding
• Can be mounted vertically or horizontally depending on the outlet orientation

Materials and durability

Constructed of die-cast aluminum with a gray finish, the 38915 uses a reinforced hidden hinge rated for 40 lb of force and built-in water dam channels to redirect moisture away from the interior.

• Die-cast aluminum body for corrosion resistance and strength
• Heavy-duty reinforced hidden hinge with 40 lb force rating
• Pre-installed gasket and water dam channels for improved sealing

Before You Order

Confirm the model number and that you need a 1-gang vertical while-in-use cover. Verify outlet orientation and the required depth adjustment to ensure the cover will accommodate your receptacle and plug while closed.

• This SKU is for the Morris 38915 1-gang vertical gray die-cast aluminum cover.
• If you require a different gang size, orientation, finish or material, check alternate Morris models before ordering.
