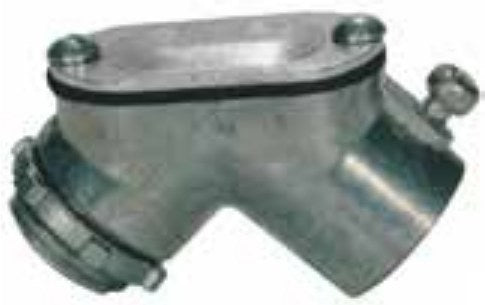

Morris 15032 EMT To BOX Set Screw Pulling Elbow, 1"

Product Overview

The Morris 15032 is a 1" EMT-to-box set screw pulling elbow designed to ease conductor pulling and protect insulation when navigating sharp conduit bends.

Constructed from die-cast zinc, the unit includes a removable aluminum cover with neoprene gasket, a zinc die-cast locknut, and combo head set screws.

Key Features

• 1" trade size for EMT-to-box transitions
• Die-cast zinc body for mechanical durability
• Removable aluminum cover with neoprene gasket for protection and access
• Assembled with zinc die-cast locknut
• Combo head set screws for secure attachment

Function and purpose

The Morris 15032 is intended to facilitate pulling conductors through an EMT-to-box transition where the conduit run includes a sharp bend. It creates a smooth path that helps protect conductor insulation and reduces pulling tension at the bend.

• Specifically used at sharp bends to make conductor pulling easier and protect insulation.
• Provides an access point via removable cover for routing conductors during installation.

Materials and construction

The unit features a die-cast zinc body and a removable aluminum cover with a neoprene gasket. These materials provide mechanical strength and a gasketed seal where the cover meets the body.

• Body: Die-cast zinc
• Cover: Removable aluminum
• Seal: Neoprene gasket
• Fasteners: Combo head set screws and zinc die-cast locknut (assembled)

Installation and use

Install the 15032 by attaching the elbow to the EMT and the outlet box per standard conduit and box connection practices. Use the removable cover to route conductors through the elbow around the bend, then reinstall the gasketed cover to protect the conductors and maintain the enclosure.

• Remove the aluminum cover to pull conductors through the elbow.
• Reinstall the neoprene-gasketed cover after pulling to protect insulation and close the opening.
• Combo head set screws secure the connection to conduit; the locknut is supplied assembled.

Product specifications

Key identification and physical details for quick reference.

• Brand: Morris
• Catalog No.: 15032
• Type: EMT To BOX Set Screw Pulling Elbow
• Trade Size: 1"
• Material: Die-Cast Zinc

Before You Order

Confirm the model number and trade size before ordering to ensure compatibility with your conduit and box. This page covers the single Morris 15032 (1") pulling elbow.

• Verify 1" EMT trade size matches the conduit run and box knockouts.
• Confirm quantity required for the number of bends and transitions in the installation.
