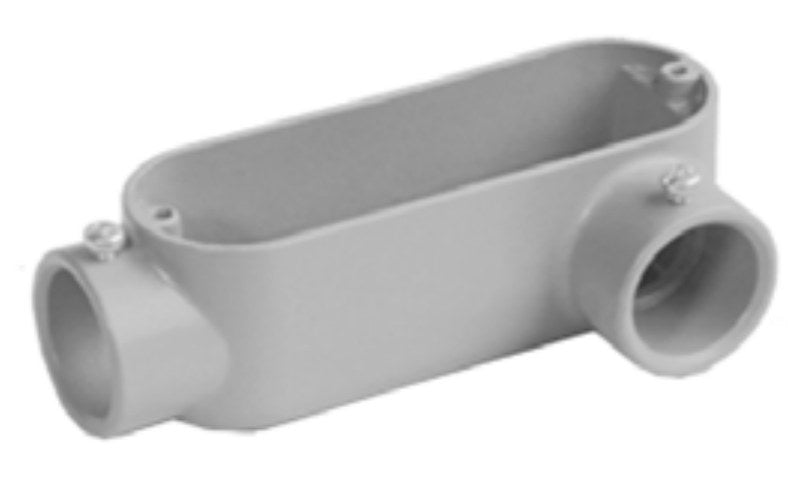

Morris 14203 Aluminum EMT Set Screw Conduit Body LL Type, 1-1/4"

Product Overview

The Morris 14203 is an LL-type conduit body for 1-1/4" EMT runs that provides access for pulling, splicing, and maintenance. It has a die-cast aluminum body and a flat back for mounting close to walls.

This set-screw style conduit body accepts a gasketed cover to provide rain-tight protection when a gasketed cover is used and is intended for use at pull points, corners, and splice locations in an EMT conduit run.

Key Features

• 1-1/4" trade size (EMT)
• Die-cast aluminum body
• Set-screw connection for EMT
• Flat back design for close-to-wall mounting
• Rain-tight when used with a gasketed cover

Function and typical uses

The Morris 14203 LL-type conduit body provides an access opening in an EMT conduit run to facilitate pulling conductors, performing splices, and carrying out maintenance. LL-type bodies are typically placed at pull points, corners, and splice locations where an offset opening provides access.

• Provides access for pulling conductors and making splices.
• Used at pull points, corners, and splice locations in EMT runs.
• Intended for 1-1/4" trade size EMT conduit systems.

Materials and physical design

The body is die-cast from an aluminum alloy. The flat back design enables mounting close to walls or other flat surfaces.

• Die-cast aluminum construction.
• Flat back for close-to-wall mounting.

Installation, access and covers

This conduit body uses a set-screw connection for EMT conduit. During installation conductors are pulled through the body and an appropriate cover is installed to close the access. When a gasketed cover is installed the assembly is rain-tight.

Select a gasketed cover that is compatible with LL-type conduit bodies in the 1-1/4" trade size.

• Set-screw connection for EMT.
• Use a gasketed cover to achieve rain-tight protection.
• Flat back simplifies mounting.

Key specifications

Quick reference of the identifying and sizing details for ordering and specification.

• Brand: Morris
• Catalog number: 14203
• Type: Aluminum EMT set-screw conduit body, LL type
• Trade size: 1-1/4"
• Material: Die-cast aluminum

Before You Order

Confirm the catalog number, trade size, and quantity before ordering.

• Verify trade size (1-1/4") matches your EMT conduit.
• If rain-tight protection is required, order a compatible gasketed cover.
